Product details
- Brand
- Wistopht
- Color / finish
- White
- Product type
- Electric standing desk frame only
Description
This Wistopht base lets you build a sit-stand workstation around a separate desktop. Its telescoping crossbar adjusts to the chosen top, and dual motors lift the steel legs together. The white powder-coated finish works with light wood, white or contrasting work surfaces.

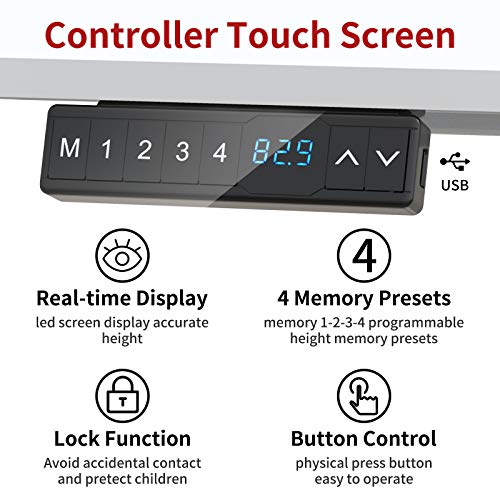

The controller stores preferred heights and includes settings for movement limits and locking. Choose the frame by your seated and standing working heights first, then check desktop size, mounting points and the weight of the completed setup.

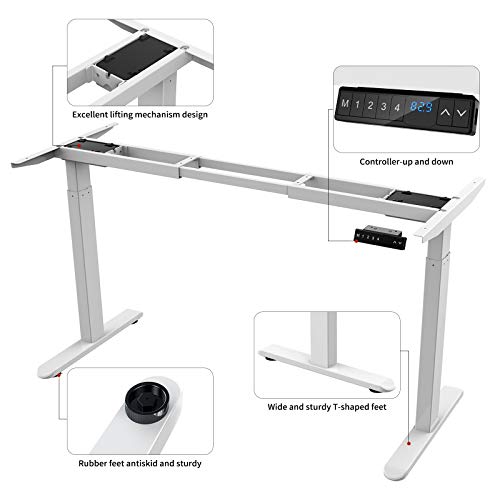

Features
- Dual-motor lift: one coordinated lifting system for the two-stage legs.
- Adjustable frame width: fits a range of desktop widths rather than one fixed top size.
- Memory controller: supports saved working heights, limit settings and a lock function.
- Leveling feet: help position the frame on a level, stable working surface.
- Thermal and overload protection: supports normal intermittent adjustment within the stated duty cycle.
Specifications
- Minimum frame height
- 28 in
- Maximum frame height
- 44.1 in
- Listed load capacity
- 264 lb
| Construction | Powder-coated steel |
|---|---|
| Lifting columns | 2-stage; dual motor |

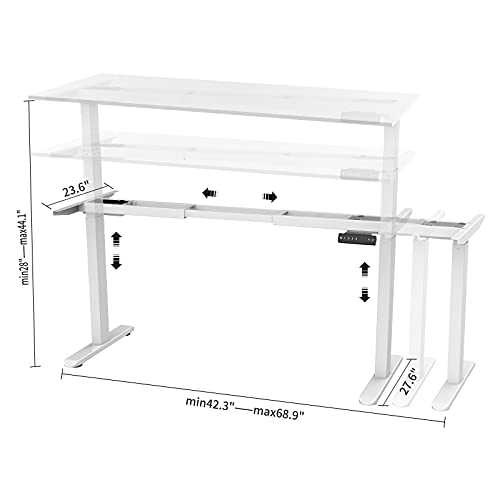

| Frame height range | 28–44.1 in, before desktop thickness |
| Frame width range | 42.3–68.9 in |
| Listed desktop width | 43.3–74.8 in |
| Desktop depth | 23.6–29.5 in in the detailed specification; confirm deeper tops |
| Suggested top thickness | 3/4 in, with suitable mounting hardware |
| Duty cycle | Maximum 2 minutes running, followed by 18 minutes resting |
| Listed lift speed | Up to 1.57 in per second |
The original feature list mentions a deeper 31.5 in top, while its detailed specification states 29.5 in. Confirm fit before using a top outside the smaller stated range. Specifications apply to B08VWZKBQ1, not other Wistopht frames.
Plan the finished desk
| Working height | Add desktop thickness to the 28–44.1 in frame range. |
|---|---|
| Load | Account for the desktop, monitors, arms and everything carried by the frame. |
| Mounting | Check the top material, underside clearance and screw length before drilling. |
| Cable movement | Leave enough cable slack for the highest position and keep cables away from moving parts. |
What's included
- White motorized desk frame
- Memory controller
Desktop and pictured computer equipment are not included. Confirm the supplied hardware against the assembly packing list.
Common questions
Is this a complete desk?
No. This item is the adjustable base. You need a desktop compatible with its size, weight and mounting requirements.
Will it work for a shorter seated user?
The lowest finished height is at least 28 in plus your desktop thickness. Compare that with your comfortable keyboard height before choosing it.
Can I keep raising and lowering it continuously?
No. The supplier specifies a 10% duty cycle: up to two minutes of movement followed by 18 minutes off. It is designed for intermittent height changes.
What should I do after assembly?
Follow the supplied initialization or reset procedure before loading the desk. Check all connections and movement clearance; do not force an unresponsive lifting column.
Product information & sources
Exact frame dimensions, controller features and duty cycle come from supplier record B08VWZKBQ1. An exact manufacturer manual was not located; different Wistopht frame ranges were excluded. The independent reference informs workstation placement only. OSHA: workstation desk placement and clearance. Reviewed September 2026.
