Product details
- Brand
- Kensington
- Color / finish
- Black
- Product type
- Dual gas-spring monitor arm
Description

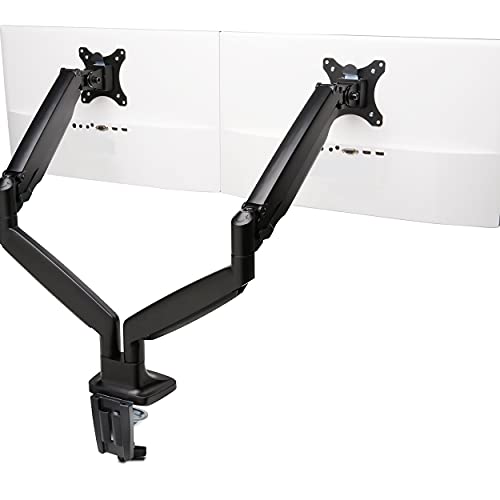

The SmartFit One-Touch dual arm replaces separate display stands with two adjustable supports. It allows a primary screen to sit directly in front of you while a second is angled nearby, or lets you reposition both screens when sharing work across a desk. The color-coded SmartFit guide provides a starting point for height selection.
Final placement should still reflect your chair height, viewing distance and the tasks on screen. A mounting arm creates adjustment options; it does not automatically establish the best position for every person. Check the displays and desk together before choosing clamp or grommet installation.
Features

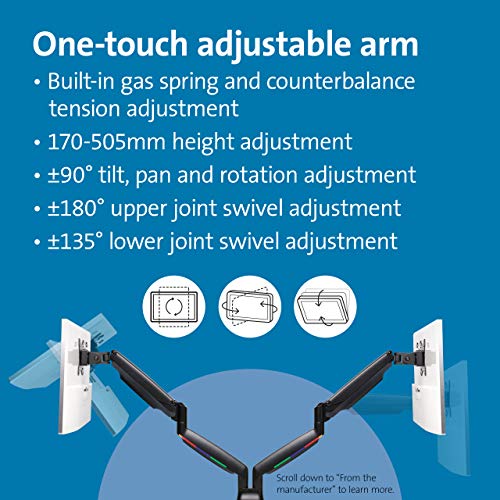

- Independent gas-spring arms: Adjust each screen’s height, reach and angle separately.

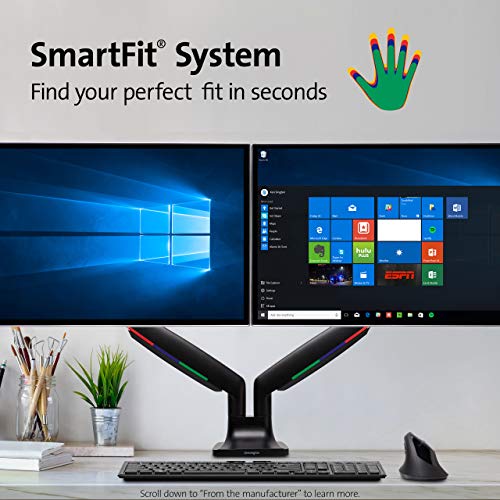

- SmartFit fitting guide: A color-coded system helps establish an initial screen height.
- Counterbalance adjustment: Tune spring tension to the installed monitor weight.
- Detachable VESA plates: The mounting plates separate from the arms for installation.

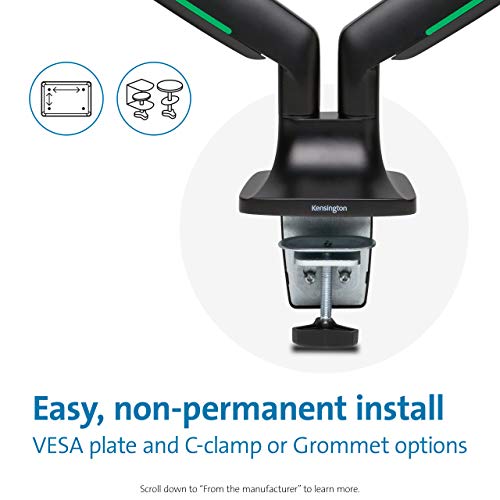

- Two desk attachment methods: Use an appropriate edge clamp or through-desk grommet mount.

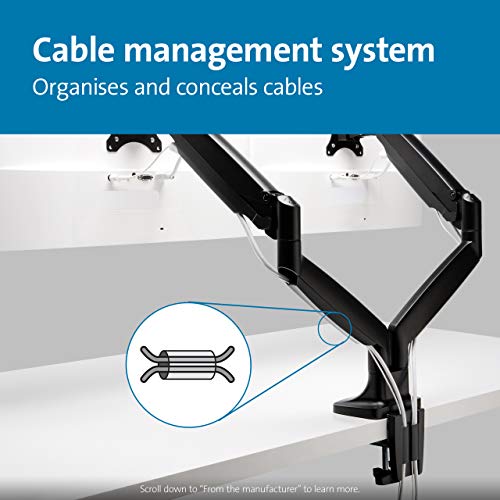

- Integrated cable routing: Keep display leads organized along the moving arms.
Specifications
| Model | K59601WW; black dual |
|---|---|
| Display size guidance | 13–34 in per screen |

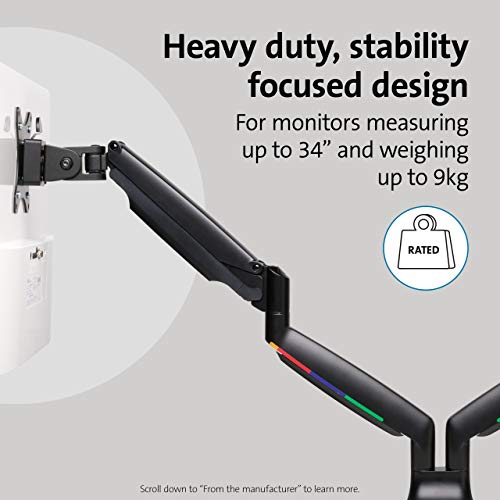

| Maximum monitor weight | 19.8 lb / 9 kg per arm |
| VESA patterns | 75 × 75 and 100 × 100 mm |
| VESA-center height | 6.7–19.9 in above desktop |
| Clamp desktop thickness | 10–85 mm |
| Grommet desktop thickness | 10–80 mm |
| Grommet hole diameter | 10.5–50 mm |
Match the screens, clamp and desk construction
Remove the original stands when checking display weight. Look for recessed mounting holes or a curved back that may need the hardware specified in the monitor’s instructions. At the desk, check the underside as carefully as the top: an apron or reinforcement rail can prevent the clamp from seating correctly.
| Portrait use | Confirm that the screen can rotate without hitting the desk or the neighboring display. |
|---|---|
| Tension setup | Adjust after mounting each monitor, supporting the screen while following the supplied instructions. |
| Cable slack | Leave enough cable for the furthest intended position and prevent tight loops at the VESA plate. |
Common questions
Does the 34-inch guidance guarantee compatibility?
No. Weight, VESA pattern, depth and physical clearance all matter as well as diagonal size.
Can each monitor be set differently?
Yes. The two arms allow independent positioning within their movement and clearance limits.
Do I need to drill the desk?
Not when using the edge clamp on a suitable desk. Grommet installation requires a correctly sized through-hole.
Is the SmartFit guide a fixed prescription?
No. Use it as a starting point, then adjust for your actual seating position, viewing distance and work.
Product information & sources
Product details checked against the supplied catalog information and the references below. Kensington SmartFit One-Touch manufacturer specification sheet. Reviewed September 2026.
