Brand: Honeywell
Color: Black
Features:

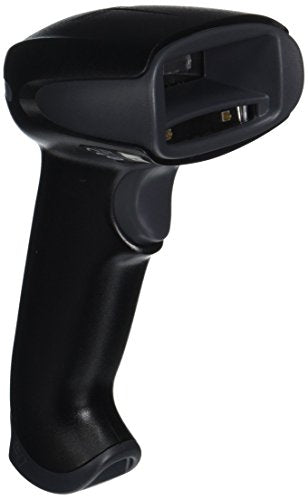

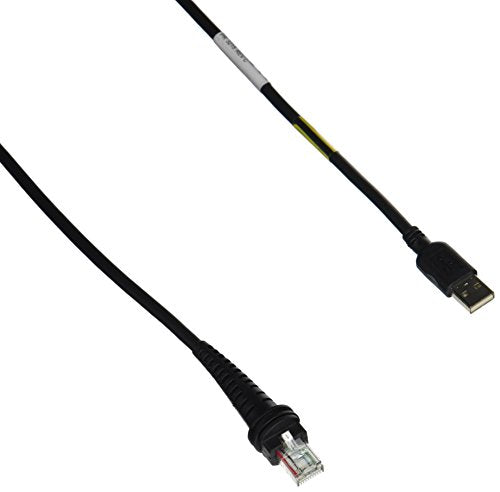

Details: This Honeywell 1900gHD-2USB Xenon 1900g black handheld barcode reader has a high-density area-image scanner instead of a laser to read compact 1D, PDF, 2D, Postal, and OCR symbologies. The reader connects to the host using a USB cable (sold separately). Two LEDs and an audible alert indicate whether a scan has succeeded or failed. A CodeGate setting automatically activates the laser to display a scan line when a barcode is placed within range of the device's sensor but prevents barcode data from being transmitted until a button is pushed to help reduce accidental scans. Honeywell Remote MasterMind software (sold separately) can be used by an administrator to manage the device remotely. For a complete set of product specifications, please see the manufacturer's brochure. Specifications Input voltage 4V to 5.5V Host system interfaces USB, RS-232, Keyboard Wedge, IBM 46xx (RS-485) Scan pattern Area image (838 x 640 pixel array) Decode capability Reads standard 1D, PDF, 2D, Postal, and OCR symbologies Motion tolerance Up to 240 in/s (610 cm/s) for 13 mil UPC at optimal focus Scan angle 41.1 degrees horizontal; 32.3 degrees vertical Pitch; skew 45 degrees; 65 degrees Print contrast 20% minimum reflectance difference Drop specs Reader is designed to withstand fifty 6 ft. (1.8 m) drops to concrete. Ratchet stand is designed to withstand fifty 5 ft. (1.2 m) drops to concrete on each of the faces. Environmental sealing IP41 Reader dimensions* 4.1 x 2.8 x 6.3 inches/104 x 71 x 160 mm (L x W x H) Reader weight 5.2 oz. (147 g) with battery Color Black * L is length, the horizontal distance from left to right; W is width, the horizontal distance from front to back; H is height, the vertical distance from bottom to top. Barcode scanners, also known as barcode readers, can be used to scan and decode barcodes and to transmit barcode data to a computer or another host system. Barcode readers with a single-line laser can be used to scan linear, one-dimensional (1D) barcodes. Some lasers can produce light in an omnidirectional pattern to allow scanning of barcodes from different angles. Other barcode readers contain CCD (charge-coupled device) light sensors instead of a laser for accuracy and wear resistance. Barcode scanners with raster scanning, area imaging, and other scanning technologies can allow scanning of two-dimensional (2D) or Portable Document Format 417 (PDF417) barcodes, among other types. Some barcode readers provide onboard flash memory to allow the storage of barcode data before transmitting it to a computer or host system through a USB cable or wireless WLAN or Bluetooth connection. Many barcode readers have a handle for handheld use and come with a stand or a charging cradle for fixed position applications, while others are designed for stationary use on a counter or another flat surface. Some portable readers are small enough to be carried in a pocket or attached to a lanyard. Barcode readers are used at retail checkout counters and other points of sale (POS) locations and in warehouses and shipping facilities. Honeywell manufactures products, materials, and technologies used in aerospace, transportation, and automation and control systems. The company, founded in 1885, is headquartered in Morristown, NJ.
