Product details
- Brand
- Ergotron
- Color / finish
- Dove gray woodgrain surface / black frame
- Product type
- Manual desktop standing desk converter
Description
WorkFit-Z Mini is suited to a compact workstation built around one monitor or a laptop. It sits on your existing desk, with a raised main surface for the display and a lower tray for the keyboard and mouse. The gray woodgrain finish softens the look of a functional black lift frame.
A hand lever releases the height adjustment, and the platform travels straight up and down. That movement keeps the working position close to the original desk footprint as you change height. The converter is supplied ready to place on a suitable stable desktop, making it an option when replacing the entire desk would be impractical.
Features
- 31-inch-wide upper surface: provides a compact platform for a monitor or laptop setup.

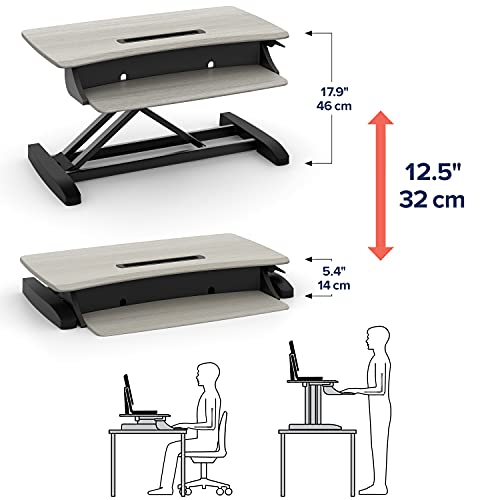

- 12.5-inch lift travel: changes the workstation height above your existing desk.
- Straight vertical movement: keeps the platform from swinging forward as it rises.
- Separate keyboard tray: moves with the upper surface while keeping the input devices lower.

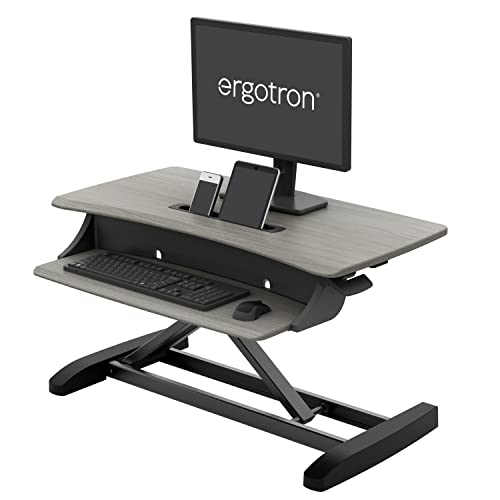

- Integrated device slot: holds a phone or tablet within view.
- No clamp installation: the assembled converter rests on the desk surface.
Specifications
- Surface width
- 31 in
- Lift travel
- 12.5 in
- Total load
- 25 lb
| Model / part | WorkFit-Z Mini / 33-458-917 |
|---|---|

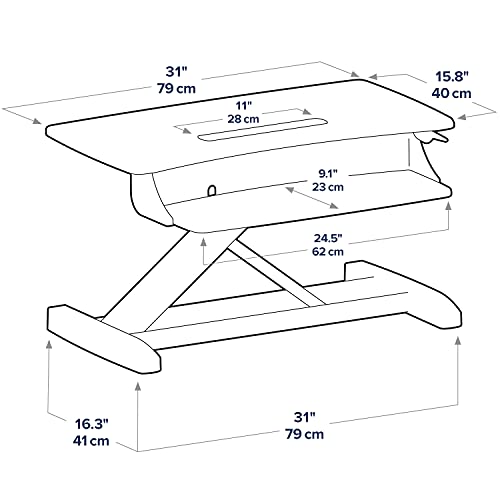

| Main surface | 31 W × 15.8 D in |
| Lift travel | 12.5 in |
| Combined equipment load | Up to 25 lb across both surfaces |
| Keyboard-tray load | Up to 5 lb, included within the total limit |
| Keyboard tray | Approximately 24.5 in wide |
| Listed product weight | 32 lb |
| Adjustment | Manual lever; vertical lift |
Check fit on the desk you already own
Route monitor and power cables with enough slack for the full movement. After placing the converter, raise it slowly and check that nothing catches underneath or pulls at the display. Keep equipment within the surface edges and the combined load rating.
| Display setup | Measure the monitor stand's footprint, not only the screen's diagonal size. |
|---|---|
| Keyboard and mouse | Check that both fit the separate tray with room for normal mouse movement. |
| Desk strength | The desk must support the converter itself plus your equipment. |
| Working heights | Check both your seated and standing positions; lift travel is not the same as total desk height. |
What's included
- WorkFit-Z Mini desktop converter
- Integrated keyboard tray
- Leg covers and zip tie, as listed
Monitor, computer, keyboard, mouse and the supporting desk are separate.
Common questions
Does it need electrical power to lift?
No. Height adjustment is manual using the hand lever; there is no electric lift motor.
Is the 25 lb limit for each surface?
No. It is the combined equipment limit. The keyboard tray also has its own 5 lb maximum within that total.
Will it hold two monitors?
Its compact surface is primarily intended for a single-monitor or laptop arrangement. Any proposed setup must fit the actual surface and remain within the load limits.
Is the surface 31 × 21 inches?
The upper work surface is approximately 31 × 15.8 inches in Ergotron's documentation. The deeper overall outline includes the forward keyboard area.
Product information & sources
Manufacturer drawings distinguish upper-surface dimensions from the overall outline and show the combined and keyboard-tray load limits. Tray depth varies between document revisions, so only the consistent width is specified. Ergotron WorkFit-Z Mini manufacturer sheet; Ergotron dimensional drawing and load limits. Reviewed September 2026.
