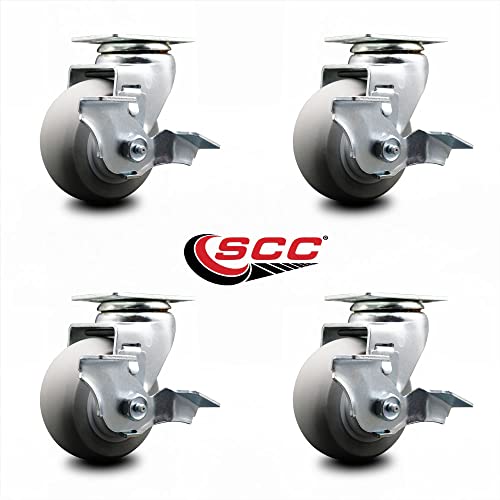

Service Caster Series #20 Thermoplastic Rubber Swivel Casters
$155.12
Brand: Service Caster
Model: Series #20
Color: 4 Swivel - Top Lock Brakes - Gray
Size: 4" Wheel
Features

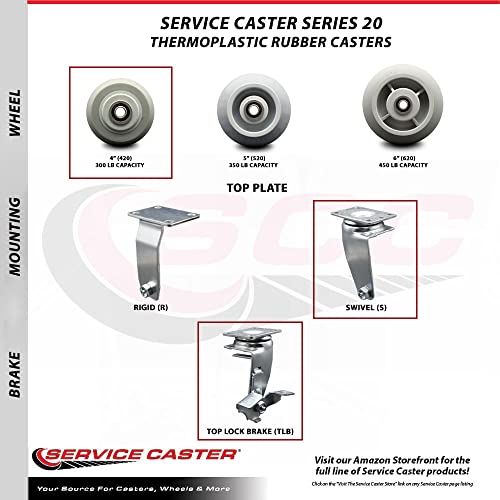

- These Service Caster Series #20 Thermoplastic Rubber casters offer various wheel sizes and mounting heights: 4” Wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height; 6” wheel: 7-1/2” mounting height.
- Weight Capacity: 4": 300 lbs Capacity Per Caster; 5": 350 lbs Capacity Per Caster; 6": 450 lbs Capacity Per Caster

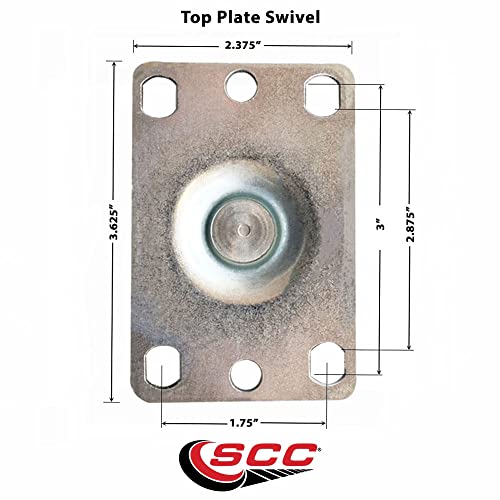

- Top plate measures at 2-3/8" x 3-5/8" with a bolt hole pattern of 1-3/4" x 2-7/8" to 3" and can either be bolted or welded on.
- Brake options include a top lock brake (TLB). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only.
- Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing.
Details

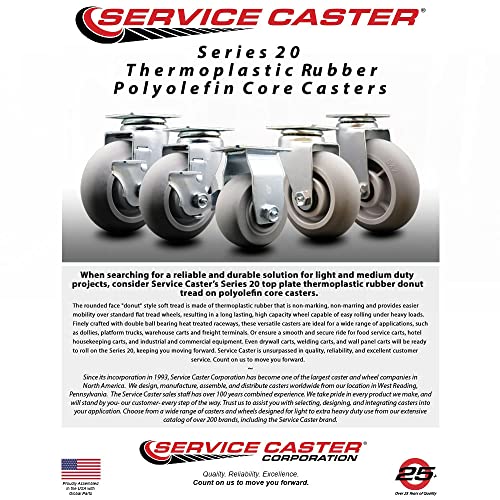

Service Caster Series #20 casters feature thermoplastic rubber wheels, ball bearings, and swivel operation for maneuverable equipment and furniture. The top lock brake applies locking force to the wheel tread, while the top plate can be bolted or welded for installation.
UPC: 734005076349
