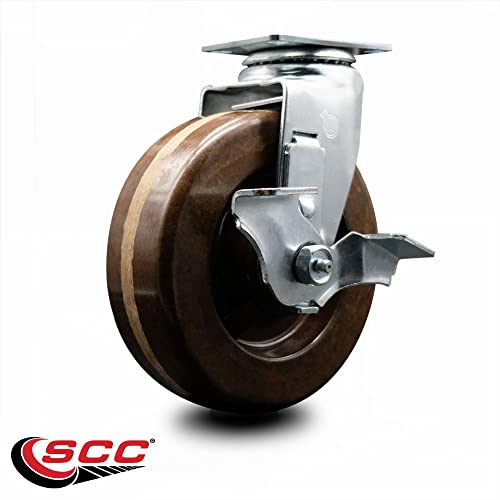

Service Caster Series #20 Phenolic Swivel Caster with Brake

Brand: Service Caster

Model: Series #20

Color: Swivel - Top Lock Brake - Brown

Size: 6" Wheel

Features

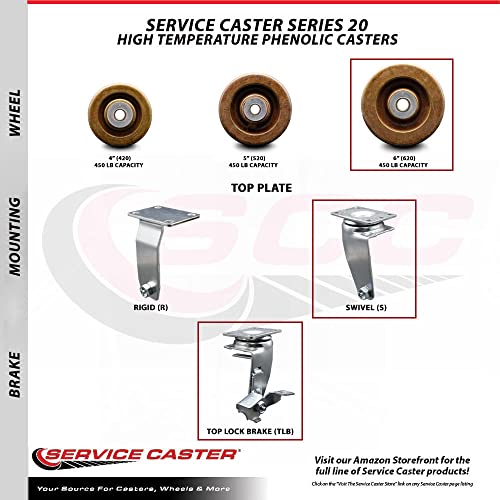

• These Service Caster Series #20 High Temperature Phenolic casters offer various wheel sizes and mounting heights: 4” Wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height; 6” wheel: 7-1/2” mounting height.
• Weight Capacity: 4": 450 lbs Capacity Per Caster; 5": 450 lbs Capacity Per Caster; 6": 450 lbs Capacity Per Caster

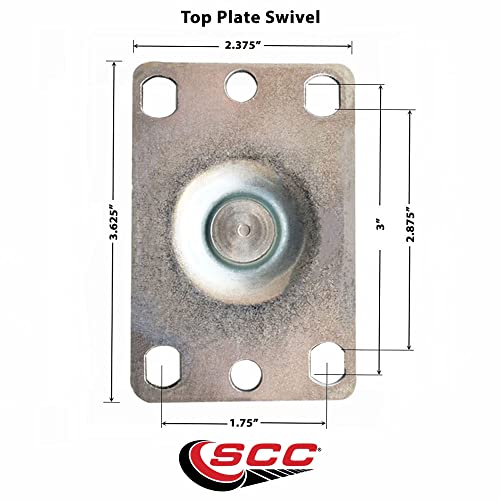

• Top plate measures at 2-3/8" x 3-5/8" with a bolt hole pattern of 1-3/4" x 2-7/8" to 3" and can either be bolted or welded on.
• Brake options include a top lock brake (TLB). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only.
• Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing.

Details

Service Caster Series #20 swivel caster features a high-temperature phenolic wheel and roller bearing for dependable movement in demanding applications. The top lock brake applies locking force to the wheel tread, while the top plate can be bolted or welded in place.

UPC: 734005072167
