Service Caster Series #30 Rigid Caster, No Brake

Brand: Service Caster

Model: Series #30

Color: Rigid - No Brake - Black

Size: 6" Wheel

Features

• These Service Caster Series #30 Glass Filled Nylon casters offer various wheel sizes and mounting heights: 4” wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8” wheel: 9-1/2” mounting height.
• Weight Capacity: 3.25": 900 lbs Capacity/Caster, 4": 1,200 lbs Capacity/Caster, 5",6" and 8": 1,250 lbs Capacity/Caster

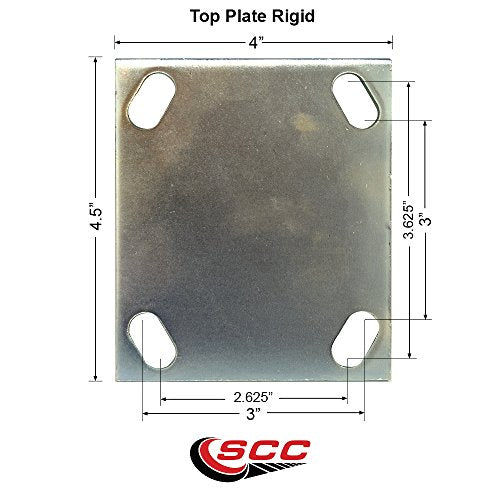

• Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on.
• Brake options include a top lock brake (TLB), a total lock brake (TTL), or a side lock brake (SLB). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The side lock brake (SLB) places a positive locking force against the wheel hub locking the wheel only. The total lock brake (TTL) places a positive locking force against the wheel tread and the swivel simultaneously locking the wheel and the swivel for a complete stationary position.
• Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing.

Details

Service Caster Series #30 rigid caster with a stainless steel and glass-filled nylon construction, black wheel, and ball bearing for smooth rolling. This no-brake design features a top plate that can be bolted or welded for installation.

UPC: 011586561229
