Service Caster Floor Leveling Nylon Swivel Caster

Brand: Service Caster

Model: Floor Leveling

Color: Top Plate - 3.74" x 3.74"

Size: 2.8" Wheel - 1 PC

Features

• These Service Caster Floor Leveling Nylon casters offer various wheel sizes and mounting heights: 1.65” Wheel: 2.8” mounting height; 1.97"” wheel: 3.27” mounting height; 2” wheel: 2.85” mounting height; 2.8” wheel: 3.94” mounting height; 2.44” wheel: 4.02” mounting height; 2.83” wheel: 4.72” mounting height.
• Weight capacity ranges from 55 lbs on the 1.65” caster, 330 lbs on the 1.97”, 220 lbs on the 2”, 660 lbs. on the 2.44”, 1100 lbs. on the 2.8” & 2.83".

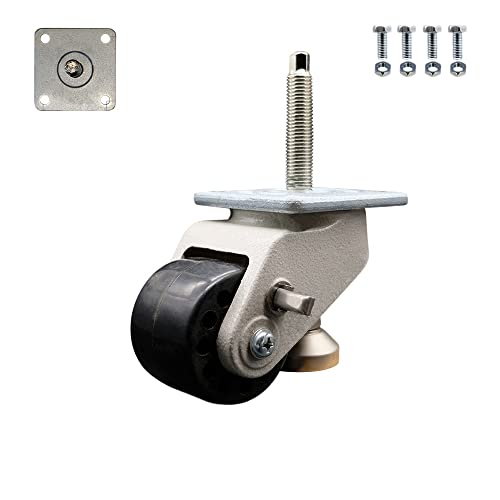

• Top plate measures at 95mm x 95mm (3.74" x 3.74") with a bolt hole pattern of 70mm x 70mm (2.76" x 2.76") and can either be bolted or welded on.

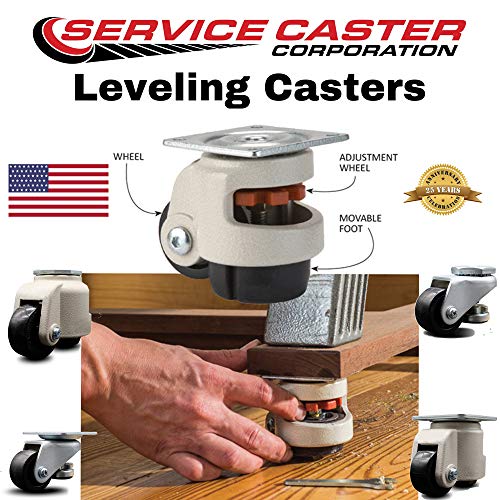

• The leveling foot can be raised by hand or wrench. Foot extends up to 50mm (1.97")below wheel for leveling purposes.
• Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing.

Details

Service Caster Floor Leveling casters feature a nylon wheel and swivel top plate for maneuverability in office furniture and equipment applications. The leveling foot can be raised by hand or with a wrench, helping stabilize equipment when needed, and the caster can be bolted or welded in place.

UPC: 011586525610
