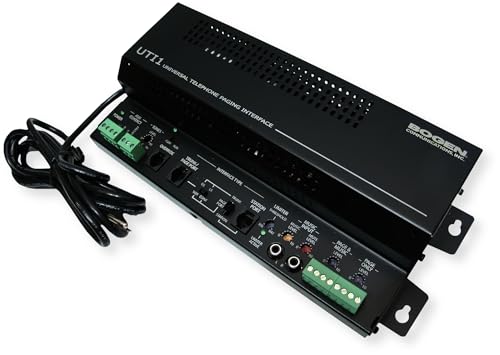

Bogen UTI1 Single-Zone Paging Interface, Black

Brand: Bogen

Model: UTI1

Color: Black

Features

• Single-zone paging for telephone systems: Provides one-way paging for self-amplified speaker systems using standard analog phone ports
• Two independent audio outputs: Delivers separate paging with background music and paging only signals with individual level controls
• Background music input with variable mute: Coordinates background music with page announcements and allows adjustable music muting during paging events
• Built-in 24 V DC power supply: Supplies up to 1 A of power to external devices or self-amplified speakers directly from the interface
• Supports multiple telephone interfaces: Interfaces with loop start trunk, ground start trunk, analog station access, and page port contact closure or voice activation
• Advanced override and tone control: Handles emergency override paging, night ringer, tone burst and chime selections via contact closure
• Programmable timers and DTMF setup: Allows page duration control and full DTMF programming with block suppression for reliable operation
• Non-volatile memory retention: Retains setup data without battery backup for dependable configuration retention
• Wall-mount design with optional rack kit: Includes mounting flanges and is compatible with the RPKUTI1 rack panel/security cover (sold separately)

Details

The Bogen UTI1 provides single-zone, one-way paging through standard analog phone ports for self-amplified speaker systems. It offers independent paging and paging-with-background-music outputs, adjustable music muting, programmable tones and timers, emergency override support, DTMF setup, and built-in 24 V DC power for external devices or self-amplified speakers.

UPC: 746175919463
