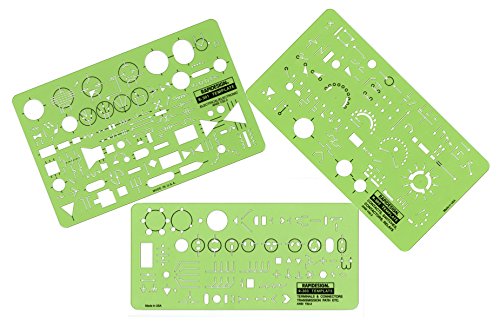

RAPIDESIGN R300 Electrical & Electronic Symbol Templates
$42.93
Brand: RAPIDESIGN
Model: R300
Features
- A comprehensive set of electrical/electronic templates
- Taken from ANSI Y32.2 symbols and grouped into sections for easy use
- In correct relative size so any size grid can be obtained through photographic reduction.
- This complete set provides nearly all electrical and electronic symbols used
- Made in USA
Details
The RAPIDESIGN R300 set includes three electrical and electronic symbol templates organized into sections for convenient technical drawing reference. Based on ANSI Y32.2 symbols, the set provides nearly all commonly used electrical and electronic symbols and supports creating varied grid scales through photographic reduction.
UPC: 014173253125
