Product details
- Brand
- CZUR
- Color / finish
- Black
- Product type
- A3 overhead book scanner and document camera
Description
The ET24 Pro keeps books open on the desk while a camera captures the pages from above. Its software corrects page curvature and can convert printed text into searchable or editable files. That makes it a useful tool for reference books, office paperwork and material that would be awkward to feed through a conventional scanner.
The two side lights give you another way to illuminate a page when the overhead light creates a reflection. They help with lighting control, but very glossy paper remains a challenging original. Page placement, lighting and a quick inspection of the result are part of achieving a readable digital copy.
Features

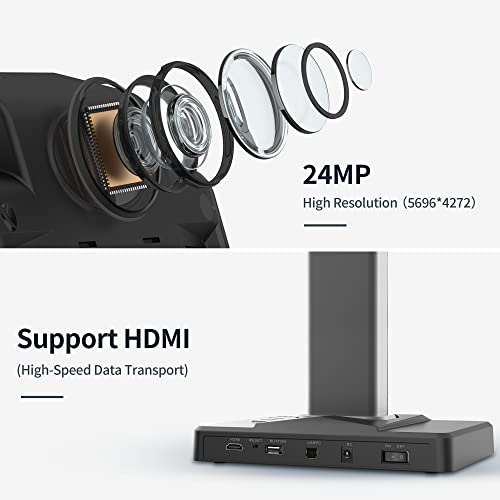

- 24MP camera: captures images at up to 5696 × 4272 pixels.
- A3 capture area: accommodates flat documents up to approximately 16.5 × 11.7 inches.

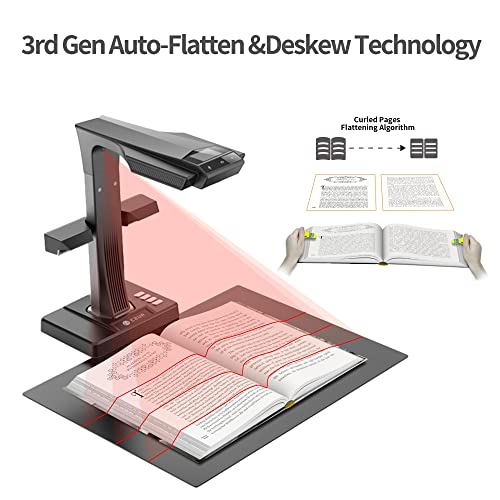

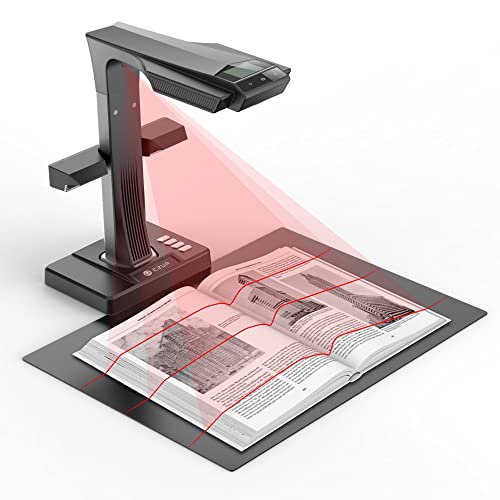

- Curve-flattening workflow: uses software correction for the curved surface of an open book.

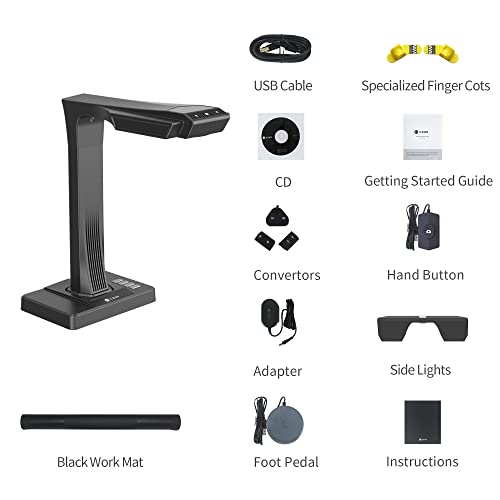

- Side and overhead lights: allow adjustment of the illumination direction to suit the material.
- OCR conversion: supports more than 180 languages for searchable PDFs and editable document exports.
- Preview screen and HDMI: provide visual positioning feedback and a connection for supported presentation use.
Specifications
| Model | ET24 Pro |
|---|---|
| Image sensor | 24 megapixels |
| Maximum flat-page area | A3, approximately 16.5 × 11.7 in |
| Published resolution | 320 dpi at the stated scan area |
| Pixel dimensions | 5696 × 4272 |
| Preview display | 2.0 in |
| Connections | USB and HDMI |
Match the lighting and page to the task
Begin with one sample spread near the center of the book and another near the binding. Check whether the corrected text remains legible, whether fingers have been removed cleanly and whether the page margins are complete. Reposition the book or lighting before committing to a long batch.
| Matte printed pages | A straightforward starting point for text recognition and archiving. |
|---|---|
| Glossy magazines | Try the side lights with the head light off, then inspect for glare; highly reflective pages are not recommended. |
| Searchable files | Review names, small text and complex tables after OCR. Recognition accuracy depends on the original. |
Common questions
Does the ET24 Pro turn pages for me?
No. You handle the pages; software-assisted capture and correction reduce repetitive processing but do not automate physical page turning.
Can it scan glossy photographs?
Highly glossy materials are not recommended. Adjustable side lighting may reduce reflections, but it cannot guarantee an even, reflection-free capture.
Can I use the whole A3 area for a thick open book?
Check the dimensions of the opened spread and the manufacturer’s thickness guidance. The camera’s useful coverage changes with the original’s height above the desk.
Will OCR reproduce every word and table perfectly?
No. OCR is a conversion aid. Inspect the recognized text and table layout, especially for unusual fonts, small print or curved pages.
Product information & sources

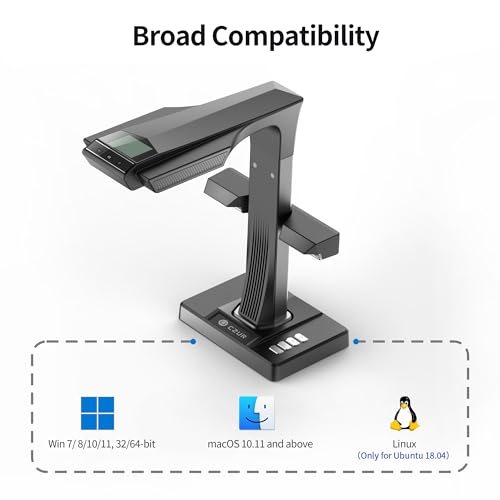

The listing and CZUR ET24 Pro references establish the configuration. Computer operating-system versions and export capabilities should be confirmed with current CZUR software support; direct-manufacturer service promises are not copied into this listing. CZUR: ET-series model comparison and workflow; CZUR: scanner size and thickness comparison. Reviewed September 2026.
