Product details
- Brand
- Brother
- Color / finish
- White
- Product type
- USB desktop document scanner
Description

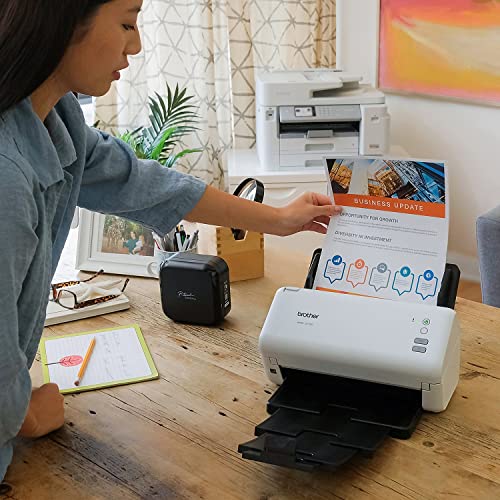

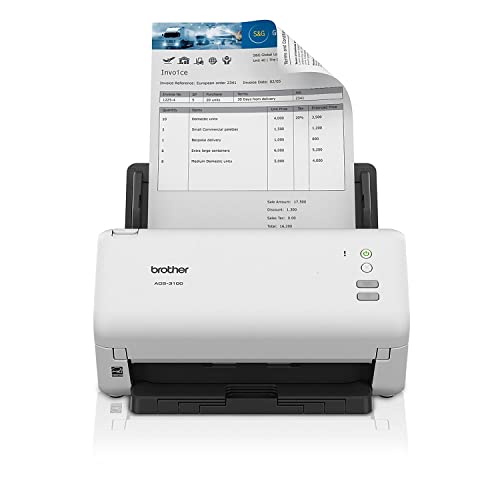

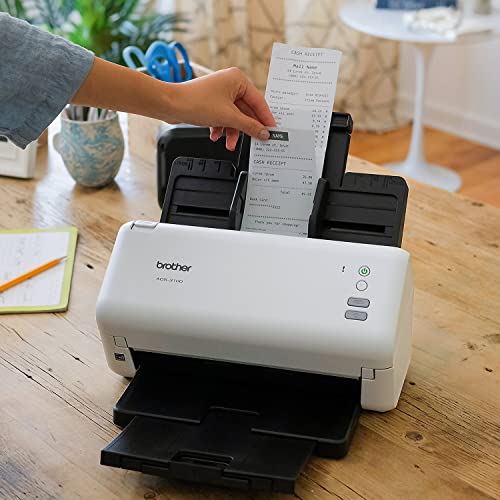

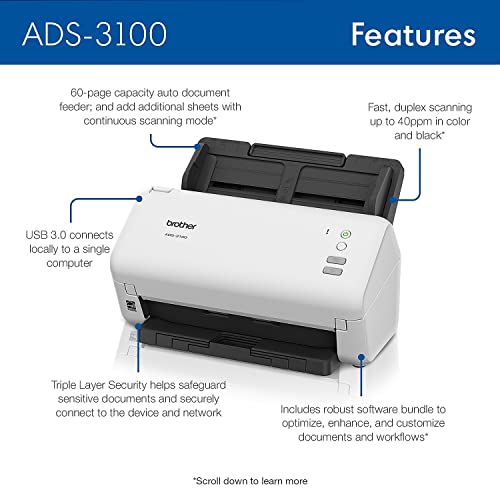

The ADS-3100 gives a dedicated workstation a practical way to turn contracts, receipts and other paperwork into digital records. Its 60-sheet automatic feeder keeps batches moving, while dual-sided capture reads the front and back together rather than requiring a second feed.

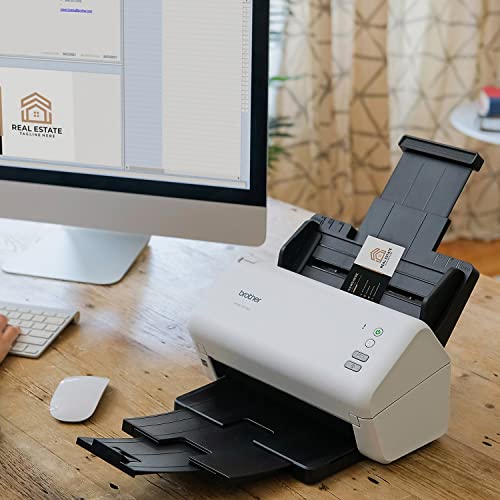

This is the USB model in Brother's desktop scanner range. It fits workflows where a computer handles file naming, review and storage, with an additional USB-memory-drive destination when needed. Driver support helps compatible scanning applications use the hardware directly.
Features
- 40 ppm rated speed: handles color or monochrome pages at up to 80 images per minute in duplex mode.
- 60-sheet feeder: supports longer paper batches than a small portable scanner.
- USB 3.0 interface: provides a direct computer connection without wireless setup.

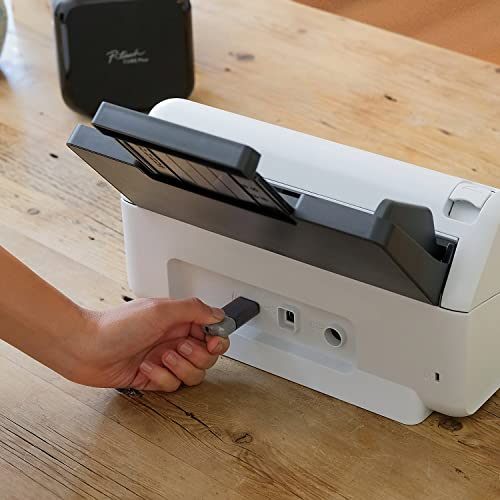

- USB memory destination: allows scanning to a compatible memory stick through the rear USB host port.
- Image processing tools: include auto deskew, blank-page skipping and background or bleed-through removal in supported workflows.
- Broad driver choices: TWAIN, WIA, ICA and SANE support varies by operating system.
Specifications
- Rated speed
- 40 ppm
- Duplex capture
- 80 ipm
- Feeder capacity
- 60 sheets
| Model | ADS-3100 |
|---|---|
| Connection to computer | SuperSpeed USB 3.0; USB 2.0 compatible |
| Network connection | No built-in Wi-Fi or Ethernet |
| Optical resolution | 600 × 600 dpi |
| Interpolated resolution | Up to 1200 × 1200 dpi |
| Scan types | Color, grayscale and black and white; automatic duplex |
| USB host | Rear port for scan to USB memory stick |
| Power | AC adapter |
Speed is rated on letter-size pages at 300 dpi with advanced processing disabled. The 60-page feeder rating uses 20 lb paper; actual capacity varies with the originals.
Build a dependable scanning routine

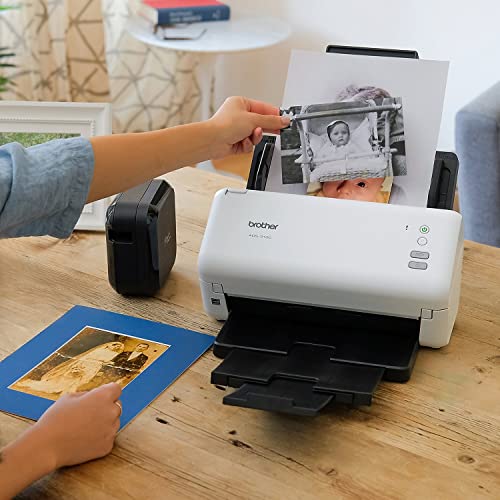

Choose a higher-resolution setting for small print or image detail when it is needed. For ordinary text records, start with a sample at 300 dpi and inspect it before committing to a large batch; larger files are not automatically more useful.
| Computer setup | Download the model-specific driver and scanning software for your operating system. |
|---|---|
| Batch preparation | Remove clips and staples, align pages and adjust the guides before feeding. |
| File review | Check both sides, page order and OCR text before filing the completed document. |
| Storage | Save to an organized folder or a compatible USB memory device, then back up important files. |

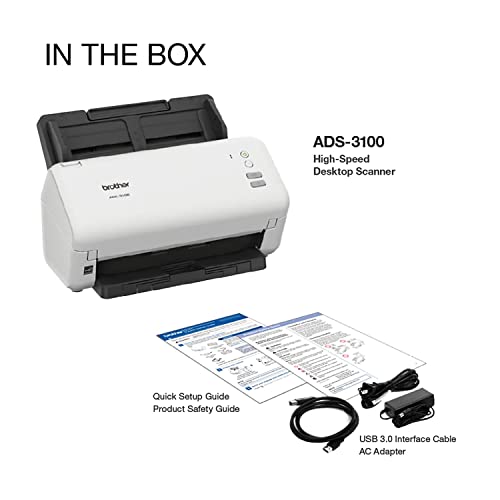

What's included
- Brother ADS-3100 scanner
- USB 3.0 interface cable
- AC adapter
- Quick setup guide
USB memory stick is separate. Software requires download; application availability varies by country and operating system.
Common questions
Is the ADS-3100 wireless?
No. Its computer connection is USB. Brother's model-specific interface specification lists neither Wi-Fi nor Ethernet for the ADS-3100.
Does it scan both sides at once?
Yes. Duplex capture scans both faces in one pass, with a rated maximum of 80 page images per minute.
Is 1200 dpi its optical resolution?
No. The optical resolution is 600 × 600 dpi. The higher 1200 × 1200 figure is interpolated output, which does not add new optical detail.
Will it work with Windows, Mac or Linux?
Brother provides model support across these platforms, but available drivers and applications differ. Check the current ADS-3100 download list for your exact system and intended application.
Product information & sources
USB connectivity is taken from the model-specific specification, correcting the conflicting wireless wording in some marketing headings. No network features from the ADS-3300W have been assumed. Brother: ADS-3100 interfaces, scan specifications and carton contents; Brother support: ADS-3100 model specifications. Reviewed September 2026.
