Product details
- Brand
- BenQ
- Color / finish
- White
- Product type
- 1080p short-throw laser projector
Description
LH820ST places the projector much closer to the screen than a conventional business projector. That can be valuable where room depth is limited or where you want to keep the projection beam away from much of the audience. The short-throw lens is fixed, so choosing the mounting point is especially important.
BenQ lists a Fast Mode for responsive 1080p/60 use as well as presentation and golf picture modes. A projector is only one part of a simulator setup: software, tracking hardware, screen material and physical clearances need their own checks. This listing does not include those elements or promise a particular simulator result.
Features
- Short-throw optics: A 0.497 throw ratio produces a wide image at a short lens-to-screen distance.
- Native Full HD: 1920 × 1080 resolution provides a 16:9 image.
- Laser illumination: Source-life ratings are 20,000 hours Normal and up to 30,000 hours Eco.
- Fast Mode: BenQ specifies 16.7 ms at 1080p/60 Hz under its stated test conditions.
- Alignment tools: Horizontal/vertical keystone and corner fit assist image setup.

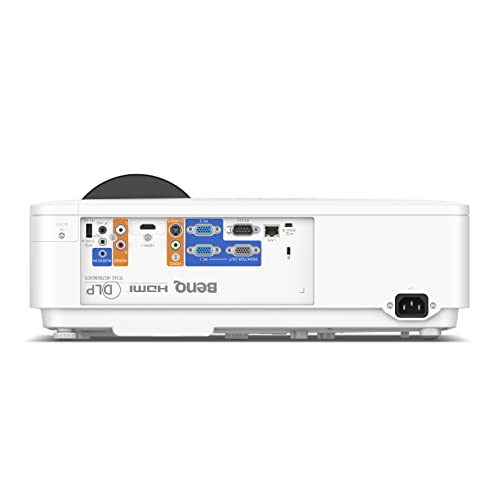

- Business connections: HDMI, legacy computer inputs and control ports support a range of installations.
Specifications
| Model | LH820ST; not LH820ST+ |
|---|---|
| Brightness | 3600 ANSI lumens |
| Native resolution | 1920 × 1080 |
| Throw ratio | 0.497:1 |
| Optical zoom | Fixed lens |
| Light source | Laser |
| HDMI inputs | 2 × HDMI 1.4b |
| Integrated speaker | 10 W |
| Rated source life | 20,000 h Normal / 30,000 h Eco |
Check the screen width before mounting
At 0.497:1, a 100-inch-wide image needs the lens about 49.7 inches from the screen. This example uses image width, not diagonal size. Measure the intended visible image and use BenQ’s installation guidance to check vertical offset and mount position; a fixed lens gives less placement freedom than an optical zoom model.
| Room geometry | Keep the lens square to the screen where possible. |
|---|---|
| Simulator use | Check the equipment maker’s requirements and protect the projector from the activity area. |
| Image correction | Use geometry tools for fine adjustment rather than assuming they solve an unsuitable mounting distance. |
What's included
- LH820ST projector
- Remote, power cord and supplied connection accessories
Common questions
Is this the LH820ST+?
No. This listing is LH820ST, the 3600 ANSI-lumen model. Specifications from the Plus version should not be substituted.
Can I use an optical zoom to change the image size?
No. The optical lens is fixed; physical distance is central to image sizing.
Does 30,000 hours mean a guaranteed service life?
No. It is the manufacturer’s light-source estimate in Eco mode, not a warranty or a lifespan for every component.
Is simulation software included?
No. The projector displays a compatible video source; simulation software, sensors and screen are separate.
Product information & sources
Product details checked against the supplied catalog information and the references below. BenQ LH820ST specifications. Reviewed September 2026.
