Sold Out $675.00
Brand: BAOSHISHAN
Features:
Details: BAOSHISHAN Electric 1.5M Projector Bracket Motorized Electric Lift Projector Hanger Remote Control 110V For Cinema Church School With Double Motors & Max load 15kg
Installation
1.The distance between ceiling and false ceiling must bigger than the height of fold up size of the lift
2.Suggest open dimension on false ceiling for the lift is: 470x470
3.Suggest open a 470x470mm maintenance window on the false ceiling, 100~200mm away from the back side of the lift
4.Drill four holes correctly on the ceiling for the installation plate, considering the direction of the installed projector, then mount the installation plate of the lift on the ceiling firmly with four D=8mm explosion screws through the four D=10mm screw holes
5.The explosion screws must installed in concrete or masonry or more strong ceiling. The explosion screws must drill deeply into the ceiling to keep adequate bearing capability
Technical parameter
Minimum dist for ceiling and false ceiling: 440mm
Bottom plate size: 500x500MM
Loading capacity: 15kg
Max power consumption: 50W
Tile angle: ±22.5 degrees
Roll angle: ±15 degree

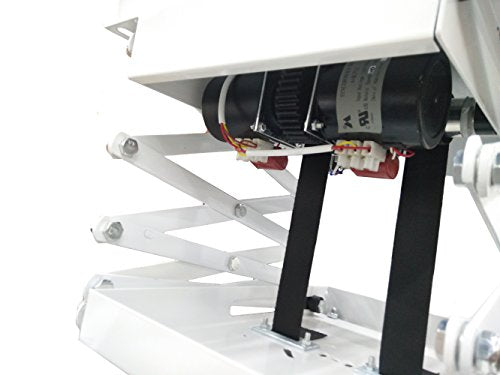

Motor: synchronous motor
Stroke: 150cm
Gross Weight: 17kg
Note
1.card slot can be not installed if the space is not enough.
2.If the thickness of projector is 10cm, the minimum full hide thickness(ceiling height) is 34cm,every projector thickness adds 1cm, the install thickness adds 1cm accordingly.

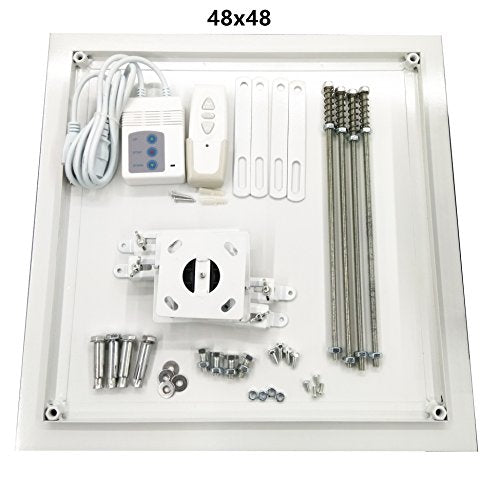

3.The standard base plate is 48*48cm
4.If you have any question, please feel free to contact with us. We will try our best to give you a satisfactory solution.
EAN: 7458621621273
Collections: Office Electronics, XML Feed 10
Category: BAOSHISHAN, Feed10, United States
Type: Office Electronics
Vendor: BAOSHISHAN
