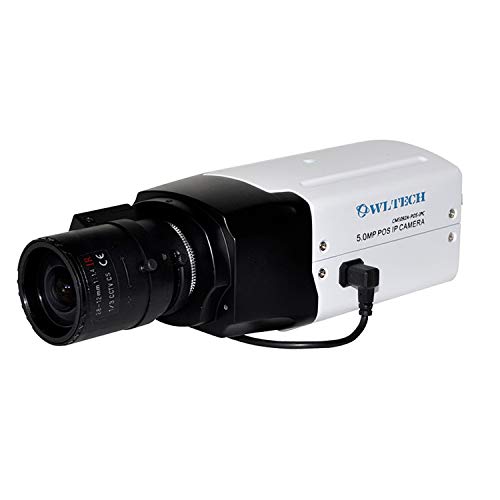

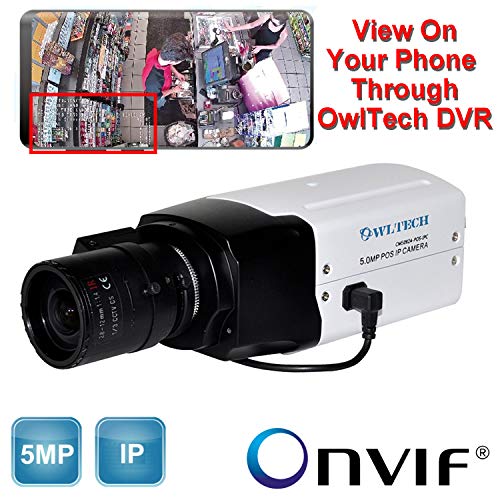

5.0MP IP POS Camera Text Interface for POS Cash Register & ATM and Overlay Text on NVR/IP Camera Video - Onvif Compliant - Viewing Transaction Through Your Devices

Brand: OWLTECH

Features:

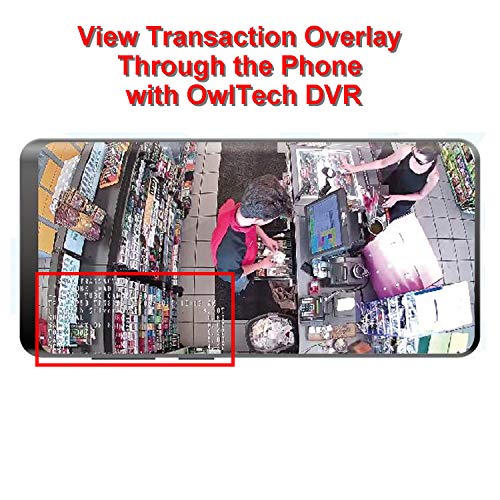

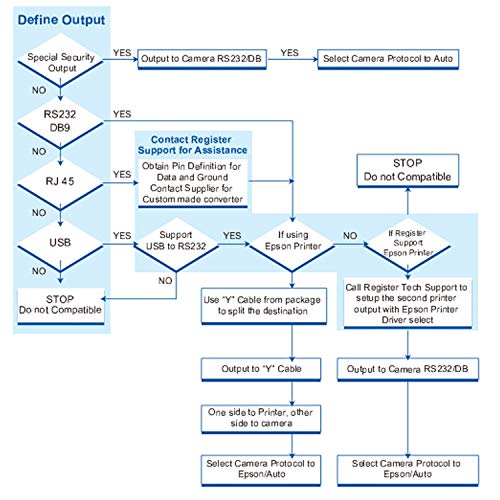

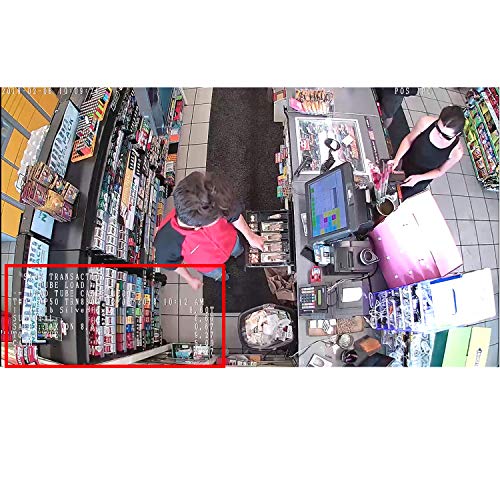

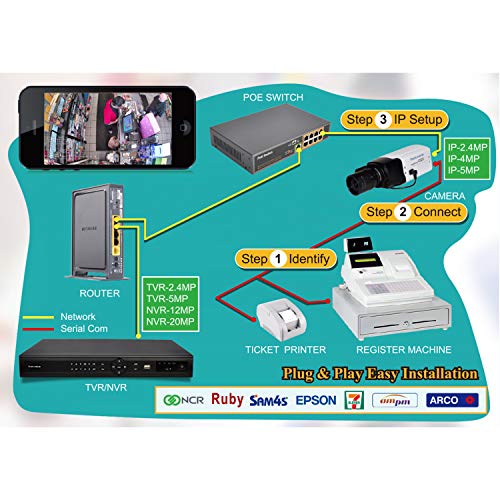

• Complete transaction display to real time video / RS232 interface to POS
• NCR, DSP, Ruby, IBM, POSIFLEX, PANASONIC protocol
• Protocols can be customized / Variety of alarm inputs and linkings
• 1/3" 4.0MP HDR (High Dynamic Range) & High Sensitivity CMOS / DWDR, 3D-DNR, AntiFogging, Image Stabilizer / DC12V, Support POE function

Details: Specification Min. Illumination - 0.6Lux/F1.2 (Color), 0.08Lux/F1.2(B/W), 0Lux (IR ON) S/N Ratio - 50db(AGC OFF) Day/Night - Auto (ICR) / Color / B/W WDR Range - DWDR, 80db Compression - H.265 (Main Profile), H.264 (Baseline/Main Profile/High Profile), MJPEG Frame Rate - Main Stream    15fps@4.0MP, 30fps@3.0MP, 30fps@2.0MP                      Sub Stream    704x576@25/30fps, 640x480@25/30fps, 640x352@25/30fps, 320x240@25/30fps Bit Rate - 32KB ~16Mbps, support VBR, CBR Protocol - TCP/IP, UDP, RTP, RTSP, RTCP,HTTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNP ONVIF - ONVIF Ver. 2.4 IE - Support IE6.0 above (built-in web server). Support Max. 8 users in the same time Power Supply - DC12V 300mA / POE (802.3af) / POE (802.3at) Working Environment - Temp. -10C to 50C  RH 85% Max Dimensions - 132mm(L) x 77mm(W) x 70mm(H) Weight - 419g POS Interface RS232 - Standard 9-pin D type connector Baud rate - 2400/ 4800 / 9600 / 19200 BPS Parity bit - Not Data bits - 8 Stop bits - 1 Text Color - White (black outline) / Blue / Yellow / Red Display position - Mainstream & sub-stream set to display position: Left Up / Right Up / Left Down / Right Down / User define arbitrary position Display line - 1-12 lines Characters per line - Max: 42

EAN: 0028672361700
