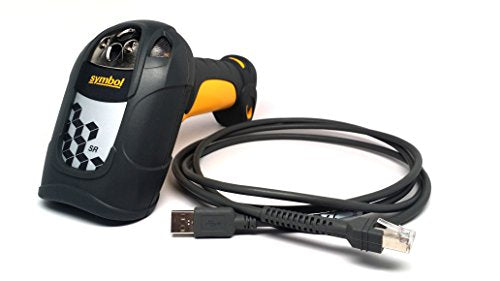

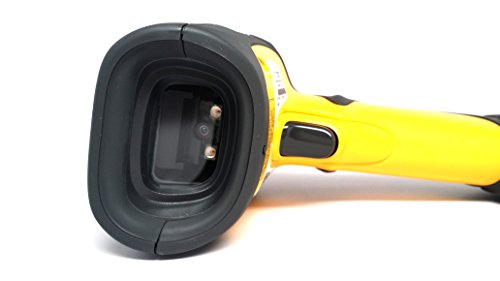

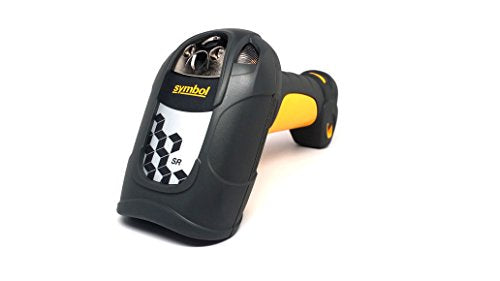

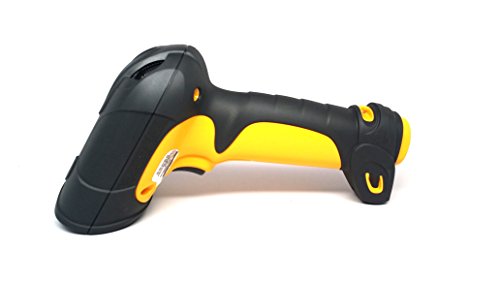

Zebra/Motorola Symbol DS3508-SR Rugged Handheld Barcode Scanner with USB Cable

Motorola

View on Amazon

Brand: Motorola

Color: Twilight Black/Yellow

Features:

  • Black and yellow barcode imager scans and decodes 1D, 2D, and PDF417 barcodes
  • Imager enables scanning of barcodes on mobile phones, computer screens, and other glossy surfaces
  • Omnidirectional scanning pattern reads barcodes at different angles, eliminating the need to align the laser
  • Motion tolerance to limit scanning errors while moving
  • ADF for modifying barcode data before transmitting to host computer

Details:

This Motorola DS3508-SR black-and-yellow rugged handheld barcode imager scans and decodes 1D, 2D, and PDF barcodes and has an IP65-rated housing for use in rough environments. The imager enables scanning of barcodes on mobile phones, computer screens, and other glossy surfaces. An omnidirectional scanning pattern scans barcodes at different angles, eliminating the need to align the laser. The scanner has a laser dot aimer to assist in precise scanning, Motion tolerance helps limit errors while scanning and allows the user to scan objects while moving. The barcode reader contains a 624 MHz processor to decode barcodes. The Advanced Data Formatting (ADF) allows the user to modify the barcode data before transmitting it to the host computer. The imager is suitable for use with Motorola 123Scan and Remote Scanner Management (RSM) software (available separately for download). With the on-board multiple interface, the imager can connect to a host (not included) with a USB, RS-232, or RS-485 (IBM 46xx Protocols) cable, or Keyboard Wedge.

Specifications
Power requirement 5V +/10% at 330mA
Host system interfaces USB, RS-232, RS-485 (IBM 46xx Protocols), Keyboard Wedge
Scan pattern Omnidirectional
Imager field of view 39.6 x 25.7 degrees (H x V)
Decode capability Reads 1D, 2D, PDF417, and Postal codes
Roll (tilt) +/-360 degrees
Pitch +/-60 degrees
Skew +/-60 degrees
Housing rating Sealed to IP65 specifications
Reader dimensions* 4.82 x 2.93 x 7.34 inches/12.25 x 7.43 x 18.65 cm (L x W x H)
Reader weight 11.85 oz./336 g
Color Black and yellow

* L is length, the horizontal distance from left to right; W is width, the horizontal distance from front to back; H is height, the vertical distance from bottom to top.

Barcode scanners, also known as barcode readers, can be used to scan and decode barcodes and to transmit barcode data to a computer or another host system. Barcode readers with a single-line laser can be used to scan linear, one-dimensional (1D) barcodes. Some lasers can produce light in an omnidirectional pattern to allow scanning of barcodes from different angles. Other barcode readers contain CCD (charge-coupled device) light sensors instead of a laser for accuracy and wear resistance. Barcode scanners with raster scanning, area imaging, and other scanning technologies can allow scanning of two-dimensional (2D) or Portable Document Format 417 (PDF417) barcodes, among other types. Some barcode readers provide onboard flash memory to allow the storage of barcode data before transmitting it to a computer or host system through a USB cable or wireless WLAN or Bluetooth connection. Many barcode readers have a handle for handheld use and come with a stand or a charging cradle for fixed position applications, while others are designed for stationary use on a counter or another flat surface. Some portable readers are small enough to be carried in a pocket or attached to a lanyard. Barcode readers are used at retail checkout counters and other points of sale (POS) locations and in warehouses and shipping facilities.

What's in the Box?

  • Motorola DS3508-SR barcode imager
  • Instructions

UPC: 710500172748

EAN: 0710500172748
