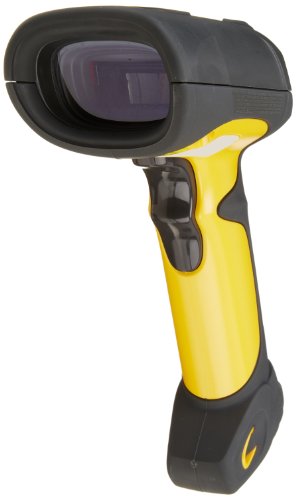

Motorola LS3408-ER Extended-Range Rugged Handheld Barcode Scanner, Black/Yellow

Motorola

View on Amazon

Brand: Motorola

Color: Yellow

Features:

  • Black and yellow handheld barcode reader scans and decodes linear 1D barcodes, including GS1 DataBar and RSS codes
  • Extended-range focus is flexible and can read successive labels at varying distances from 1/4" to 45 ft.
  • Housing is IP65 rated for use in rough environments
  • ADF for modifying barcode data before transmitting to host computer
  • Weighs 12.56 oz.; measures 4.82 x 2.93 x 7.34 inches (L x W x H)

Details: This Motorola LS3408-ER black-and-yellow extended-range rugged handheld 1D barcode scanner reads and decodes one-dimensional (1D) barcodes, including GS1 and RSS symbologies, and has an IP65-rated housing for use in rough environments. The scanner has 650-nm laser aiming dot to assist in precise scanning, and the extended-range focus is flexible and can read successive labels at varying distances from 1/4" to 45 ft. The Advanced Data Formatting (ADF) allows the user to modify the barcode data before transmitting it to the host computer. The LEDs and audible signal indicate the status of a scan. With the on-board multiple interface, the scanner connects to a host (not included) using a USB, RS-232, or IBM 468xx/9x cable, or keyboard wedge (sold separately). An integrated metal hook permits hanging or attaching to machinery. Specifications Power requirements 4.5 to 14V Power source Host power or external power supply Scan rate 36 scans per second typical Host system interfaces USB, RS-232, or IBM 468xx/9x cable, or keyboard wedge Scan pattern Retrocollective Decode capability Reads 1D barcodes, including GS1 DataBar (formerly RSS) symbologies. Also reads UPC/EAN, UPC/EAN with supplementals, GS1-128 (formerly UCC/EAN 128), JAN 8 & 13, Code 39, Code 39 Full ASCII, Code 39 Trioptic, Code 128, Code 128 Full ASCII, Codabar (NW7), Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, Code 32, Bookland EAN, and IATA. Working range 0.25 inches to 45 feet Drop specs Unit functions normally after 50 drops to concrete from 6.5 ft. (2 m) Housing rating Sealed to IP65 specifications Reader dimensions* 4.82 x 2.93 x 7.34 inches/12.25 x 7.43 x 18.65 cm (L x W x H) Reader weight 12.56 oz./356 g without cable * L is length, the horizontal distance from left to right; W is width, the horizontal distance from front to back; H is height, the vertical distance from bottom to top. Barcode scanners, also known as barcode readers, can be used to scan and decode barcodes and to transmit barcode data to a computer or another host system. Barcode readers with a single-line laser can be used to scan linear, one-dimensional (1D) barcodes. Some lasers can produce light in an omnidirectional pattern to allow scanning of barcodes from different angles. Other barcode readers contain CCD (charge-coupled device) light sensors instead of a laser for accuracy and wear resistance. Barcode scanners with raster scanning, area imaging, and other scanning technologies can allow scanning of two-dimensional (2D) or Portable Document Format 417 (PDF417) barcodes, among other types. Some barcode readers provide onboard flash memory to allow the storage of barcode data before transmitting it to a computer or host system through a USB cable or wireless WLAN or Bluetooth connection. Many barcode readers have a handle for handheld use and come with a stand or a charging cradle for fixed position applications, while others are designed for stationary use on a counter or another flat surface. Some portable readers are small enough to be carried in a pocket or attached to a lanyard. Barcode readers are used at retail checkout counters and other points of sale (POS) locations and in warehouses and shipping facilities. What's in the Box? Motorola LS3408-ER barcode scanner Instructions
