$289.60
Brand: Motorola
Color: Black
Features:

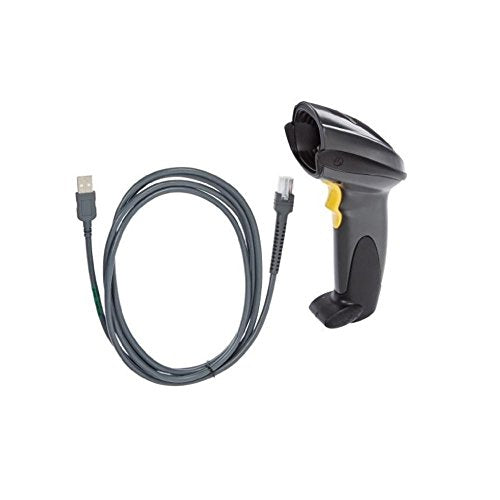

Details: This Motorola DS6707-SR black handheld barcode imager scanner reads and decodes 1D, 2D, and PDF barcodes. The imager enables scanning of barcodes on mobile phones, computer screens, and other glossy surfaces. The scanner has a 650-nm laser dot aimer to assist in precise scanning, A motion sensor automatically switches the barcode reader to handheld mode when it is picked up. The scanner has two LEDs and an audible alert that indicates the status of a scanned code. The Advanced Data Formatting (ADF) allows the user to modify the barcode data before transmitting it to the host computer. The imager connects to a host using a RS-232C or USB cable (sold separately). Specifications Host system interfaces RS-232C and USB Decode capability Reads 1D, 2D, PDF417, and Postal codes. Roll (tilt) 360 degrees Pitch +/-65 degrees Skew +/-60 degrees Motion tolerances 5 in./12.7 cm per second (horizontal) Print contrast 25% minimum reflectance Drop rating Withstands multiple 5 ft. (1.52 m) drops to concrete at operating temperature extremes, and multiple 6 ft. (1.8 m) drops to concrete at room temperature (23 degrees C) Reader dimensions* 4.72 x 2.82 x 6.55 inches/11.9 x 7.1 x 16.6 cm (L x W x H) Reader weight 6.4 oz./182 g Color Black * L is length, the horizontal distance from left to right; W is width, the horizontal distance from front to back; H is height, the vertical distance from bottom to top. Barcode scanners, also known as barcode readers, can be used to scan and decode barcodes and to transmit barcode data to a computer or another host system. Barcode readers with a single-line laser can be used to scan linear, one-dimensional (1D) barcodes. Some lasers can produce light in an omnidirectional pattern to allow scanning of barcodes from different angles. Other barcode readers contain CCD (charge-coupled device) light sensors instead of a laser for accuracy and wear resistance. Barcode scanners with raster scanning, area imaging, and other scanning technologies can allow scanning of two-dimensional (2D) or Portable Document Format 417 (PDF417) barcodes, among other types. Some barcode readers provide onboard flash memory to allow the storage of barcode data before transmitting it to a computer or host system through a USB cable or wireless WLAN or Bluetooth connection. Many barcode readers have a handle for handheld use and come with a stand or a charging cradle for fixed position applications, while others are designed for stationary use on a counter or another flat surface. Some portable readers are small enough to be carried in a pocket or attached to a lanyard. Barcode readers are used at retail checkout counters and other points of sale (POS) locations and in warehouses and shipping facilities. What's in the Box? Motorola DS6707-SR barcode reader Instructions
