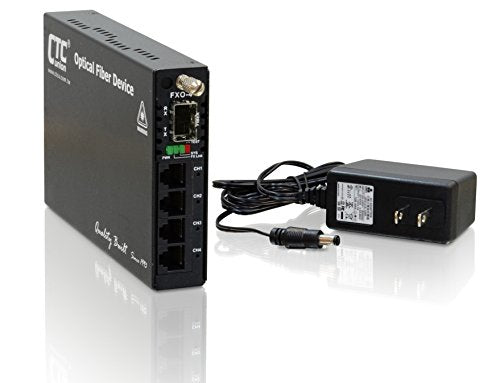

FRM220-FXO-4 - Four POTS RJ11 FXO Telephone Lines Over Fiber Multiplexer, SFP Slot, standalone w/AC Adapter

CTCUnion

View on Amazon

Brand: CTCUnion

Features:

  • POTS Line: FXS (Impedance:600ohms, REN:0.4), interfaces: RJ11 port 600Ohms and SFP slot fiber port, operating wavelength: depending on the SFP transceiver used
  • operating distance: up to 120Km on 9/125um single-mode (SM) fiber or 2Km on 50/125um or 62.5/25um multi-mode (MM) fiber, optical connector: SFP slot (empty), accepting 155Mbps (FE) SFP transceivers, front LEDs: Power, Fiber Link, System, Test mode, CH1~CH4
  • power: external 90-260V AC switching adapter 12VDC@1A with NEMA1-15(2 blades only), US type main plug, temperature: 0~50°C (Operating); 0~70°C (Storage), humidity: 20~80% non condensing (Operating); 0~90% (Storage), consumption: less than 5W, dimensions(WxDxH): 88mm x 155mm x 23mm, weight: 330g (without AC adapter), compliance: CE, FCC Class A, MTBF: 65,000 hours
  • 155M SFP needed (not included), SFP slot open to any vendor, manageable in any FRM220 series chassis supporting FRM220-NMC management card
  • simple DIP switch settings for easy standalone configuration

Details: FRM220-FXO-4 is a 4 channel POTS (Plain Old Telephone System) over fiber converter/extender. The four POTS interface uses a standard RJ-11C modular connector for each copper pair line. A pair of FRM220-FXS-4 and FRM220-FXO-4 is required to implement an end to end system. FXO mode connects to a telephone line (PSTN) or PBX station line and has ability to detect ringing voltages and to act as a telephone. FXS mode is the reciprocal unit and has ability to act as PSTN and connects to a telephone device. The small multiplexer offers great flexibility on the fiber port by adopting the widely used industry standard SFP Fast Ethernet 155M rated transceiveron both the FRM220-FXO-4 and FRM220-FXS-4 models. When the FRM220-FXO-4 card is placed in the FRM220 chassis with SNMP management, in-band management allows configuring and viewing the card and remote converter's status, type, version, fiber link status, on hook status and alarms. When placed in a single slot chassis and used standalone without management, the card may be configured by DIP switch.

UPC: 811704014909

EAN: 0811704014909
