AmScope SW-3B13-FRL Binocular Stereo Microscope, WH10x Eyepieces, 10X and 30X Magnification, 1X/3X Objective, Single-Arm Boom Stand, 8W Fluorescent Ring Light, 110V-120V

AmScope

View on Amazon

Brand: AmScope

Features:

  • Stereo microscope for home or classroom use enables students and hobbyists to inspect biological specimens, rocks, stamps, jewelry, and large specimens that require handling or manipulation
  • Binocular viewing head with pair of 10x super-widefield high-eyepoint eyepieces, adjustable interpupillary distance, and 45-degree inclination to simplify viewing for young users
  • 1x/3x objective provides low magnification and longer focal length for inspecting large-scale specimens

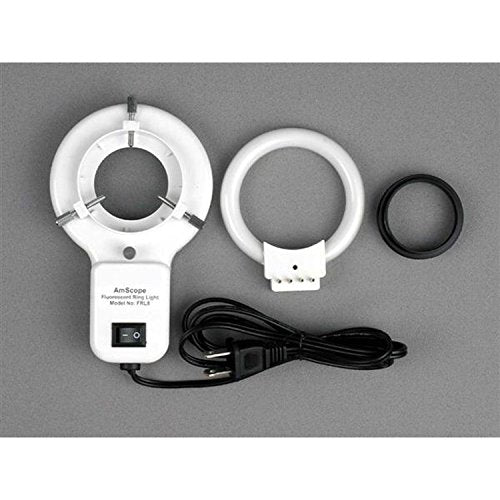

  • Removable 8W fluorescent ring in a plastic housing provides bright, shadow-free illumination(fluorescent ring light is in separate white box in the package)
  • Single boom arm with 4" vertical working distance and adjustable 16" boom arm enables users to adjust the microscope on the X- and Y-axis

Details:

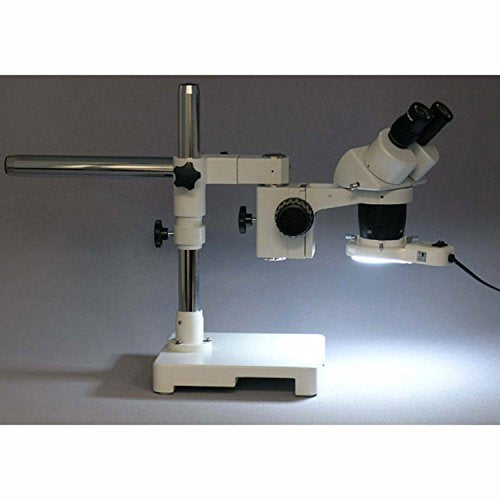

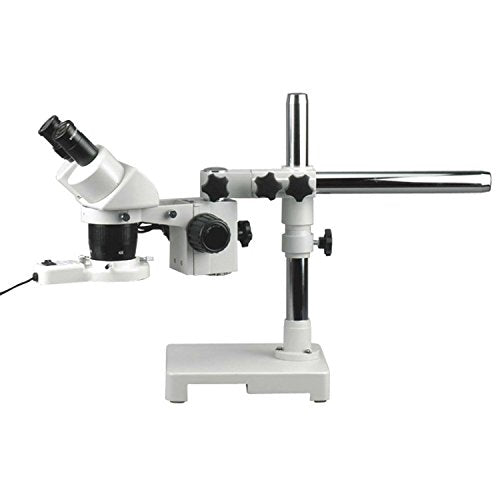

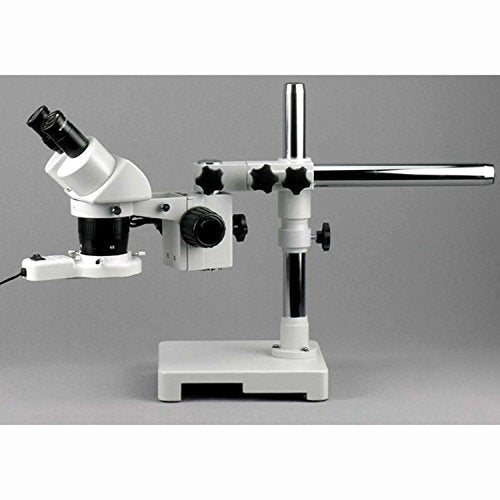

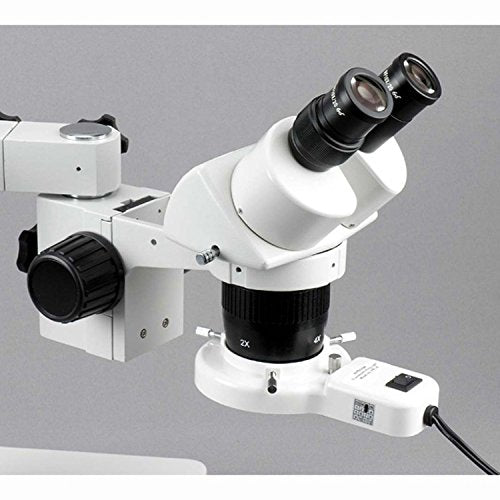

The AmScope SW-3B13-FRL binocular stereo microscope head has a 1x/3x objective, a pair of 10x20mm widefield high-eyepoint eyepieces, and a single-arm boom stand. The microscope head has a 3" O-ring style mounting ring. The binocular viewing head has an interpupillary range of 47 to 75mm, a 45-degree inclination to reduce eye and neck strain, and 360-degree rotation to enable sharing. The WF10x20mm super-widefield high-eyepoint eyepieces combine with the 1x/3x objective to provide 10x and 30x magnification, and a longer working distance for inspecting large-scale specimens that require handling or repair. High-eyepoint eyepieces ease viewing for users who wear glasses, dioptric adjustment accommodates individual eye-strength differences, and eye guards ensure comfortable viewing. The optical glass lenses provide sharp images, and are fully-coated to ensure high-resolution images. A stereo microscope, sometimes called an inspection or dissection microscope, has low magnification and a long working distance that enables users to manipulate the object being inspected.

The removable 8W fluorescent ring light provides cool, white light for observing specimens as they would appear in their natural environment. A ring light provides shadow-free illumination. It has a 2-3/8" inner diameter and uses a 110V power supply. The microscope has a 17" pillar that has an 4" vertical working distance. The 16" single-arm boom has a 24" overall length. Bilateral focus eases use for left- and right-handed users. The microscope head can be rotated on the X- and Y-axis. The solid cast-steel base is 1-3/4 x 9 x 9 inches (H x W x D, where H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back).

Specifications
Head Binocular
Magnification 10x, 30x
Objective power
1x/3x
Eyepieces (30mm) WH10x20mm
Optical working distance Up to 4"
Field of view 0.787" at 10x
Microscope stand Single-arm boom stand
Head movement X- and Y-axes
Illumination type Episcopic (reflected)
Light source Fluorescent ring, 8W
Power 110V-120V

Microscopes are instruments used to enhance the resolution of an object or image. Types include compound, stereo, or digital. Compound microscopes use a compound optical system with an objective lens and an eyepiece. Stereo microscopes show object depth in a three-dimensional image. Digital microscopes are used to display an image on a monitor, rather than looking through a lens. Microscopes can have monocular (one), binocular (two), or trinocular (three) eyepieces, with varying magnification abilities. Magnification ability refers to the size of an image. Resolution, also known as resolvant power, refers to the clarity of the image. The interaction between field of view (FOV), numerical aperture (NA), and working distance (WD) determines resolution. Microscopes can control magnification through a fixed focus, or through a range of adjustments. They can also utilize LED, fluorescent, and mirror light sources to help control viewing capabilities. Microscopes are widely used in education, lab research, biology, metallurgy, engineering, chemistry, manufacturing, and in the medical, forensic science, and veterinary industries.

United Scope manufactures microscopy equipment and accessories under the brand name AmScope. The company, founded in 1996, is headquartered in Irvine, CA.

What's in the Box?

  • Binocular stereo zoom head with 1x/3x objective
  • WH10x eyepieces, one pair
  • Single-arm boom stand with focus rack
  • Fluorescent ring light, 8W (FRL8)
  • Eye guards, one pair

UPC: 013964471205

EAN: 0013964471205

Languages: English
