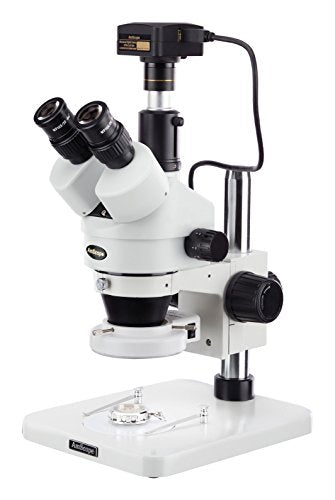

AmScope SM-1TSZZ-144S-10M Digital Professional Trinocular Stereo Zoom Microscope, WH10x and WH20x Eyepieces, 3.5X-180X Magnification, 0.7X-4.5X Zoom Objective, 144-Bulb LED Ring Light, Pillar Stand, 110V-240V, Includes 0.5X and 2.0X Barlow Lenses and 10MP

AmScope

View on Amazon

Brand: AmScope

Features:

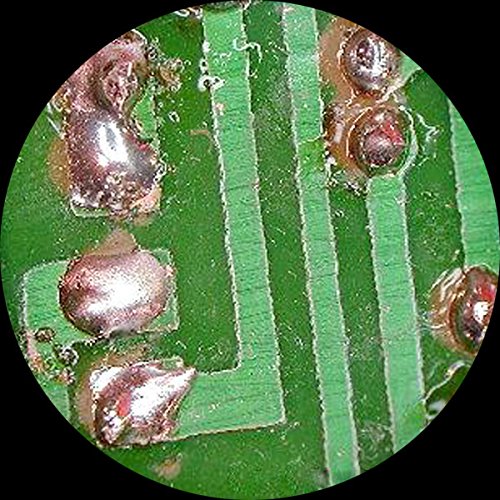

  • Digital professional stereo microscope with pillar stand has long working distance to enable users to perform work or manipulate large items, including circuit boards and dental appliances
  • Includes 10MP camera, redution lens, USB 2.0 and software for capturing or displaying images.
  • Compatible with Windows XP/Vista/7/8/10 and Mac OS X.

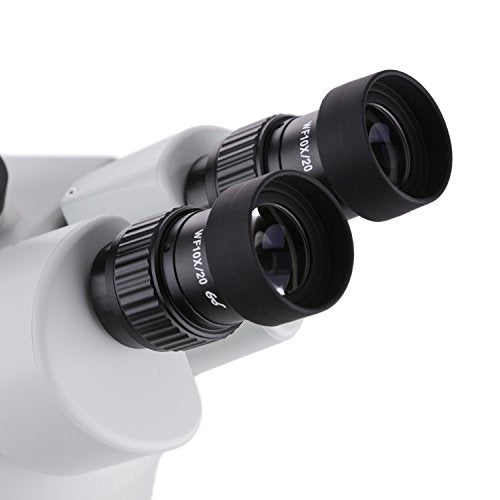

  • Trinocular head with 10x and 20x super-widefield eyepieces, adjustable interpupillary distance, 45-degree inclination to reduce neck strain, and 360-degree rotation capability to enable sharing 0.7x-4.5x zoom objective provides continuous zoom magnification, a 0.5x Barlow lens extends working distance for inspecting large-scale specimens,and a 2.0x Barlow lens extends the magnification range
  • Removable rheostat-controlled 144-bulb LED ring light provides intensity control and bright, cool light for working with temperature-sensitive or live specimens

Details:

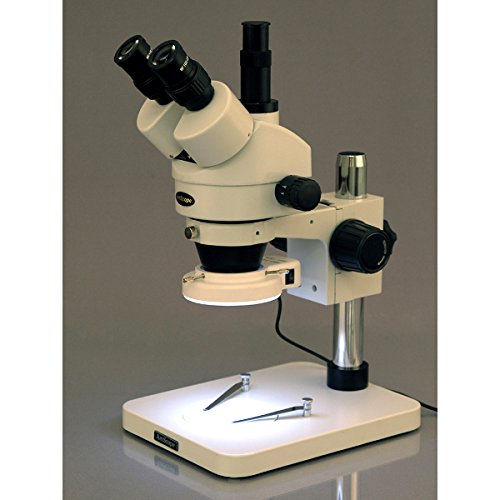

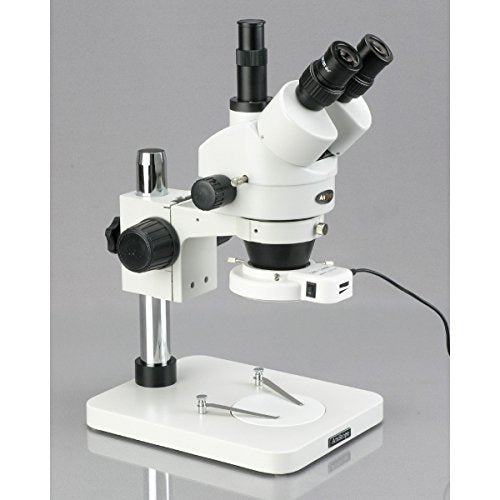

The AmScope SM-1TSZZ-144S-10M digital professional stereo zoom microscope has interchangeable pairs of 10x and 20x super-widefield high-eyepoint eyepieces, a 0.7x-4.5x zoom objective, two Barlow lenses, and a pillar stand. The microscope has an overall magnification range of 3.5x-180x. The 10MP camera has a CMOS color sensor, a reduction lens, image capture and editing software, and USB 2.0 output to capture or display still or video images on a computer or projector. The trinocular viewing head has an interpupillary range of 55 to 75mm, a 45-degree inclination to reduce eye and neck strain, and 360-degree rotation to enable sharing. The vertical trinocular port can be used as a C-Mount or 23mm photo port. The WH10x20mm and WH20x10mm super-widefield high-eyepoint eyepieces combine with the 0.7x-4.5x zoom objective to provide zoom magnification and a longer working distance for inspecting large-scale specimens that require handling or repair. The microscope comes with 0.5x and 2.0x Barlow lenses that can be added to the objective to increase the magnification range. A Barlow lens with a magnification of less than 1.0 reduces magnification and increases the working distance, while a Barlow lens with a magnification greater than 1.0 increases the magnification and reduces the working distance. High-eyepoint eyepieces ease viewing for users who wear glasses, and dioptric adjustment accommodates individual eye-strength differences. A digital stereo microscope, sometimes called an inspection or dissection microscope, has low magnification and a long working distance that enables users to manipulate the object being inspected, and is used where image capture, detailed records, or documentation is required.

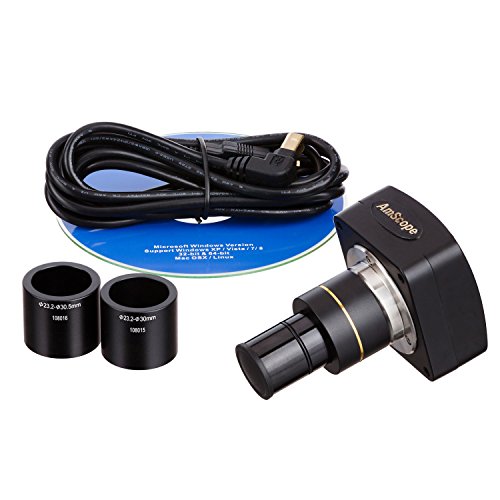

The 10MP digital camera has a CMOS color sensor for displaying still microscopy images and streaming live videos to a computer or projector. The camera has 40x magnification and a 0.5x reduction lens that ensures that the display has a similar field of view as the microscope eyepiece. The camera can be mounted in a C-Mount or any 23mm eye tube. The camera includes image capture and editing software that provides still image and live video capture and editing capability, including measurement functions. The software supports JPG, TIF, GIF, PSD, WMF, and BMP file formats and is compatible with Windows XP/Vista/7/8/10 and Mac OS X. Camera drivers are compatible with Windows XP/Vista/7/8/10 and Mac OS X. The software includes Windows APIs for native C/C++, C#, DirectShow, Twain, and LabVIEW that enable custom application development. The camera has a USB 2.0 data port (cable included).

The removable 144-bulb LED ring light provides bright, cool light for working with temperature-sensitive or live specimens. The ring light provides shadow-free illumination, and a rheostat controls the amount of light emanating from the lamp. Power and adjustment controls are located on the light head. The ring has a 2.4" (61mm) inside diameter and a 4" (100mm) outside diameter. It has a 100,000-hour life span and a 110V-240V variable power supply. The table stand has a reversible black and white stage plate that provides contrast with light- and dark-colored specimens, and stage clips to secure the specimen in place. The stage plate has a 3-3/4" diameter (95mm). The stand is 10 x 7-7/8 x 10-3/4 inches/254 x 200 x 275mm (H x W x D, where H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back).

Microscope Specifications
Head Trinocular
Magnification range 3.5x-180x
Zoom objective power
0.7x-4.5x
Eyepieces (DIN, 30mm) WH10x20mm and WH20x10mm high-eyepoint
Trinocular port C-Mount or 23mm
Field of view range 2-1/2"
Optical working distance Up to 8"
Microscope stand Pillar
Head movement X-axis
Illumination type Episcopic (reflected)
Light source 144-bulb LED ring light with rheostat
Power 110V-240V

Camera Specifications
Resolution 10MP (3584 x 2748 effective pixels)
Image type Still image and video display and capture
Camera type Brightfield
Camera sensor 1/2.3" Aptina MT9J001 CMOS (color)
Magnification 40x
Reduction lens 0.5x
Mounting size 23mm or C-Mount
Frame rate 27fps at 872x654; 8fps at 1744x1308; 1.9fps at 3584x2748
Computer connection USB 2.0 (backward compatible on PCs only)
File formats JPG, TIF, GIF, PSD, WMF, BMP
Software package Image capture and editing for Windows XP, Vista, 7, and 8; Mac OS X; and Linux
Camera driver compatibility Windows XP, Vista, 7, and 8; Mac OS X; and Linux

Microscopes are instruments used to enhance the resolution of an object or image. Types include compound, stereo, or digital. Compound microscopes use a compound optical system with an objective lens and an eyepiece. Stereo microscopes show object depth in a three-dimensional image. Digital microscopes are used to display an image on a monitor, rather than looking through a lens. Microscopes can have monocular (one), binocular (two), or trinocular (three) eyepieces, with varying magnification abilities. Magnification ability refers to the size of an image. Resolution, also known as resolvant power, refers to the clarity of the image. The interaction between field of view (FOV), numerical aperture (NA), and working distance (WD) determines resolution. Microscopes can control magnification through a fixed focus, or through a range of adjustments. They can also utilize LED, fluorescent, and mirror light sources to help control viewing capabilities. Microscopes are widely used in education, lab research, biology, metallurgy, engineering, chemistry, manufacturing, and in the medical, forensic science, and veterinary industries.

United Scope manufactures microscopy equipment and accessories under the brand name AmScope. The company, founded in 1996, is headquartered in Irvine, CA.

What's in the Box?

  • AmScope SM-1TSZZ-144S-10M stereo zoom microscope with pillar stand
  • WH10x20mm eyepieces, 30mm, one pair
  • WH20x10mm eyepieces, 30mm, one pair
  • 0.7x-4.5x zoom objective
  • 0.5x Barlow lens
  • 2.0x Barlow lens
  • 144-bulb LED ring light with power supply (LED-144S)
  • 10MP digital camera (MU1000)
  • 0.5x reduction lens
  • USB 2.0 cable
  • Software CD
  • Eye guards, one pair
  • Stage clips, one pair
  • Dust cover

UPC: 608729744245

EAN: 0608729744245
