Service Caster Series #KP30 Caster Set, 2 Braked Swivel

Brand: Service Caster

Model: Series#KP30

Color: 2 Swivel w/2 Side Lock Brakes - 2 Rigid

Size: 4" Wheel

Features

• These Service Caster Series #KP30 High Temperature Glass Filled Nylon casters offer various wheel sizes and mounting heights: 4” wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8” wheel: 9-1/2” mounting height.
• Weight Capacity: 4": 600 lbs Capacity/Caster, 5": 1000 lbs Capacity/Caster, 6": 1100 lbs. Capacity/Caster, and 8": 1200 lbs Capacity/Caster

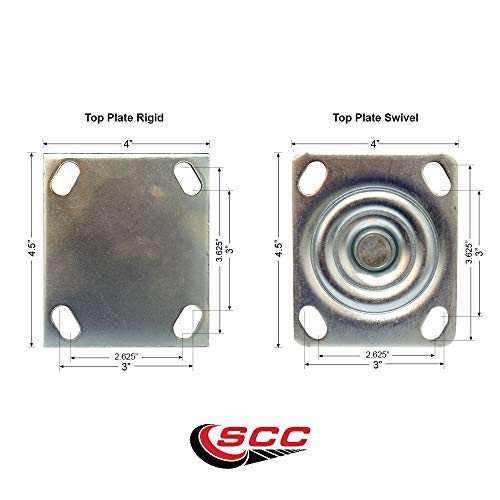

• Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on.
• Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster.
• Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing.

Details

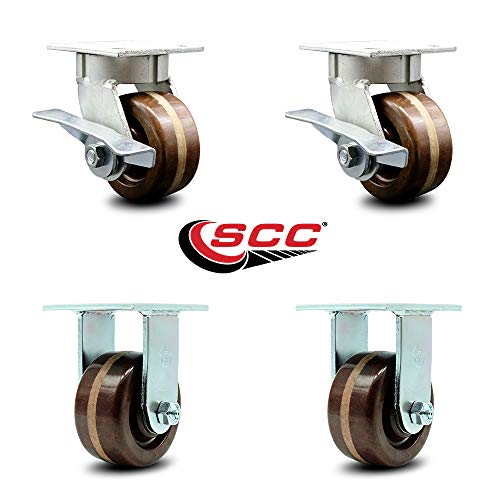

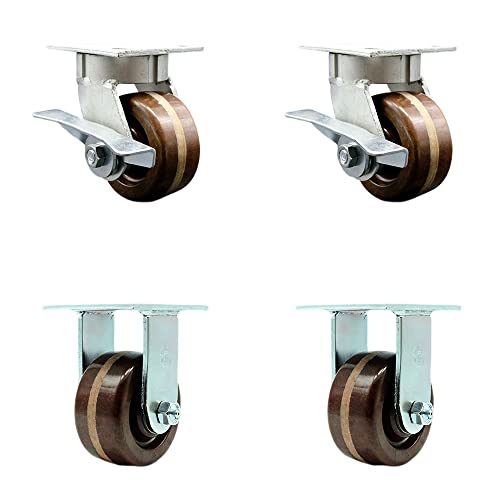

Service Caster Series #KP30 kingpinless caster set includes two swivel casters with side lock brakes and two rigid casters for a combination of maneuverability and straight-line tracking. Glass-filled nylon wheels are designed for high-temperature use, and the side lock brakes help keep the wheels from moving freely.

UPC: 734005532869
