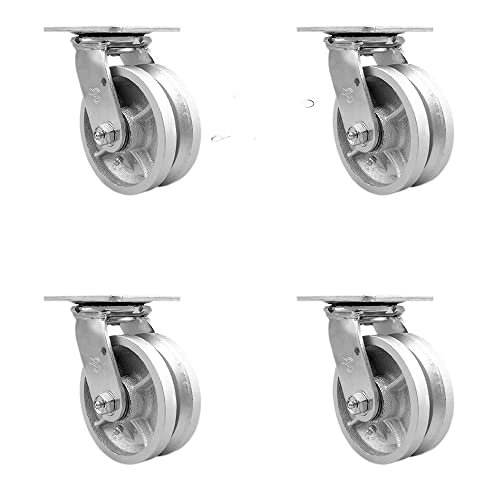

Service Caster Series #30 V-Groove Swivel Caster Set

Brand: Service Caster

Model: Series #30

Color: 4 Swivel - Bolt On Swivel Locks - Silver

Size: 5" Wheel

Features

• These Service Caster Series #30 V Groove Semi Steel casters offer various wheel sizes and mounting heights: 4” wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8” wheel: 9-1/2” mounting height.
• Weight Capacity: 4": 800 lbs Capacity/Caster, 5": 1,100 lbs Capacity/Caster, 6": 1,200 lbs. Capacity/Caster, and 8": 1,250 lbs Capacity/Caster

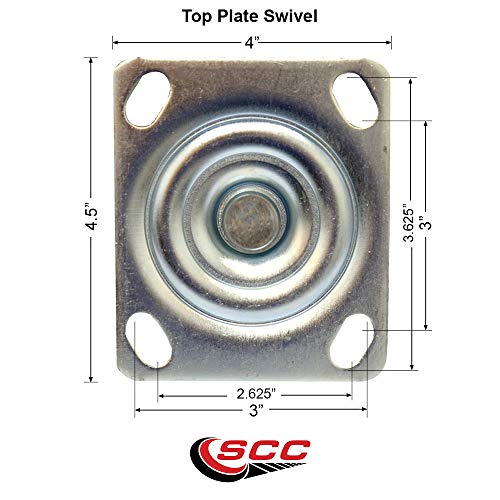

• Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on.

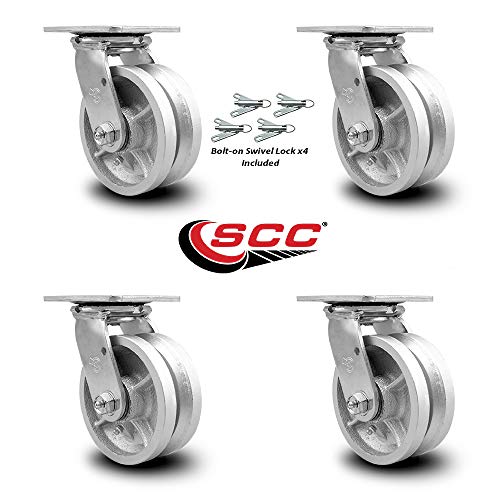

• Brake options include a top lock brake (TLB) and abolt-on swivel lock (BSL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The bolt-on swivel lock (BSL) is field installable and converts a swivel caster to rigid for straight-line tracking at any 90 degree angle via a spring-loaded bolt inserted into one of 4 notches found on the swivel raceway.
• Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing.

Details

Service Caster Series #30 V-groove semi-steel swivel casters feature bronze bearings and bolt-on swivel locks. The field-installable locks convert swivel casters to rigid casters for straight-line tracking.

UPC: 734005531657
