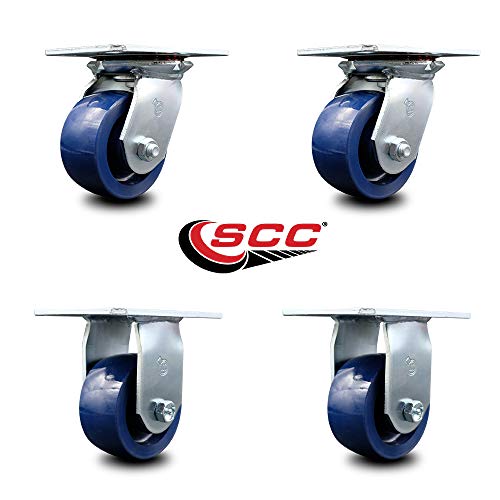

Service Caster Series #35 Solid Polyurethane Caster Set

Brand: Service Caster

Model: Series#35

Color: 2 Swivel - 2 Rigid

Size: 4" Wheel

Features

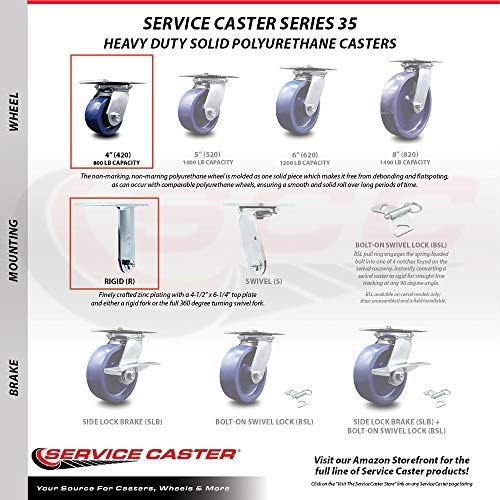

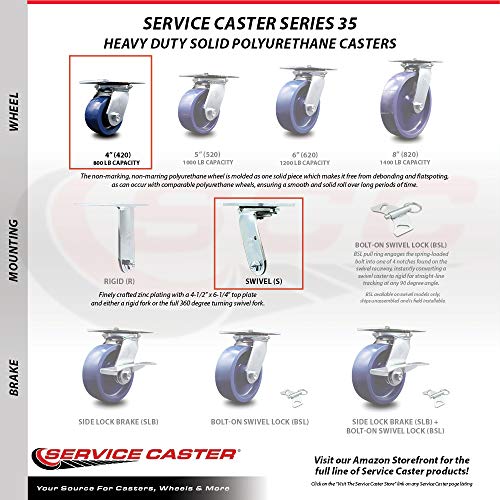

• These Service Caster Series #35 Solid Polyurethane casters offer various wheel sizes and mounting heights: 4” Wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8" wheel: 9-1/2" mounting height.
• Weight capacity ranges from 700 lbs on the 4” caster, 1000 lbs on the 5”, 1200 lbs on the 6” and 1200 lbs. on the 8”.

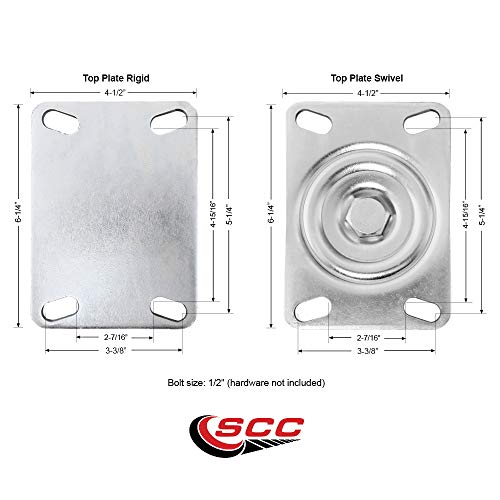

• Top plate measures at 4-1/2" x 6-1/4" with a bolt hole pattern of 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4" and can either be bolted or welded on.
• Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster.
• Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing.

Details

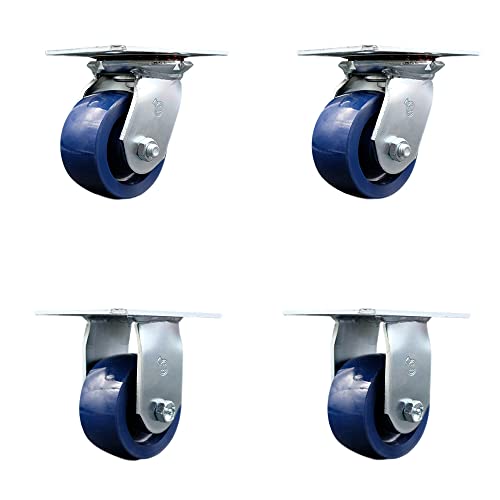

Service Caster Series #35 casters feature solid polyurethane wheels with ball bearings and a set configuration of two swivel and two rigid casters. The top plate can be bolted or welded, while optional side lock and bolt-on swivel lock brake designs support wheel and swivel control.

UPC: 011586597433
