Service Caster Series #35 Nylon Casters with Brakes and Locks

Brand: Service Caster

Model: Series#35

Color: 4 Swivel w/2 Brakes & 2 Swivel Locks

Size: 6" Wheel

Features

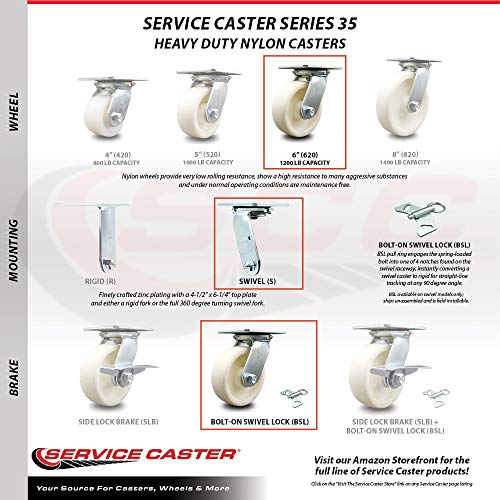

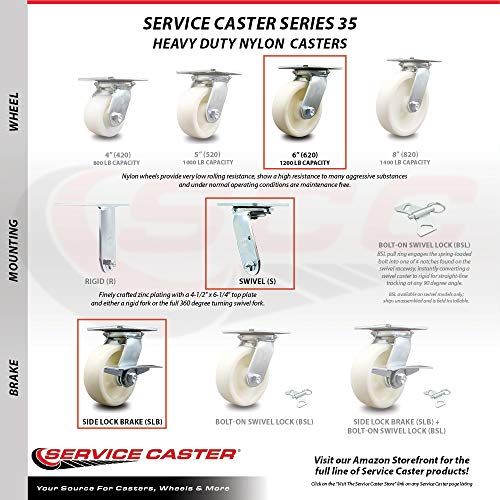

• These Service Caster Series #35 Nylon casters offer various wheel sizes and mounting heights: 4” Wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8" wheel: 9-1/2" mounting height.
• Weight capacity ranges from 800 lbs on the 4” caster, 900 lbs on the 5”, 1250 lbs on the 6” and 1250 lbs. on the 8”.

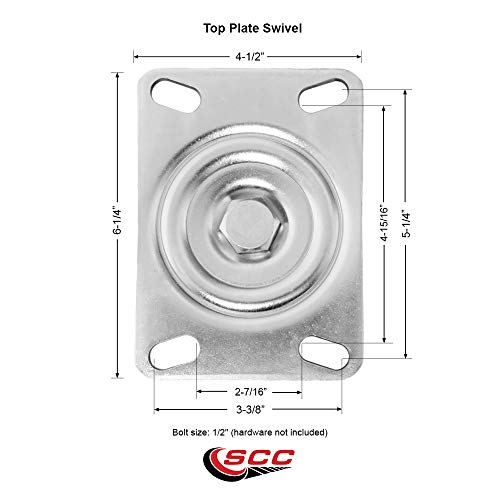

• Top plate measures at 4-1/2" x 6-1/4" with a bolt hole pattern of 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4" and can either be bolted or welded on.

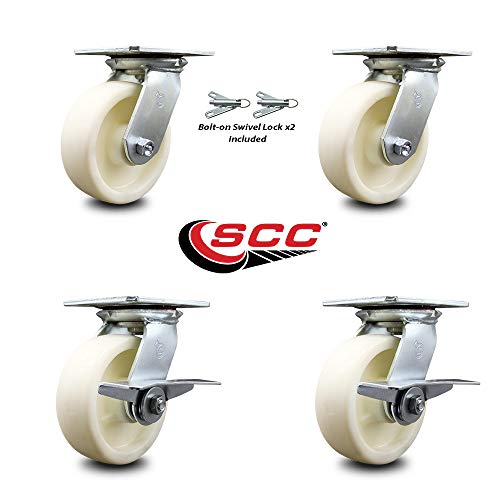

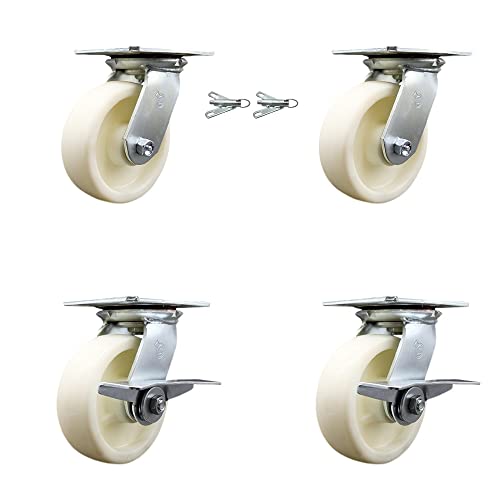

• Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster.
• Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing.

Details

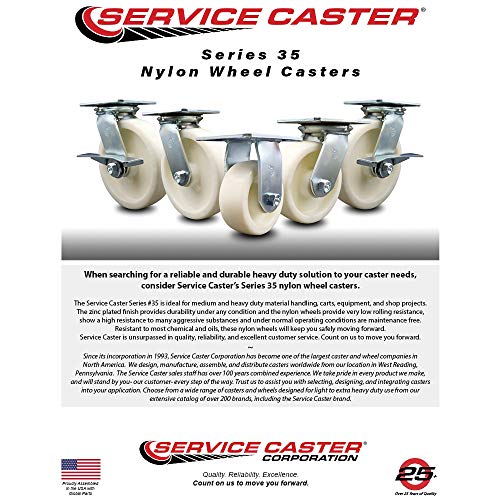

Service Caster Series #35 nylon casters include side-lock brakes to help keep the wheels from moving and swivel locks that convert swivel casters to rigid casters for straight-line tracking. Using both lock types helps secure the wheel and swivel when the caster is stationary.

UPC: 011586591684
